Duplex plan J1224-17d

Charming one bedroom duplex with an open concept floor plan. There is also a 3-unit version of this plan available here: J1224-17T
J1224-17d Front view
Bedrooms: 1    Bath: 1
Living area: 1152 sq. ft.
Other: 75 sq. ft.
Total: 1227 sq. ft.

Each unit: 576 sq. ft.

Width: 32'-11"
Depth: 42'-6"
Select plan package: What's included?
Add-ons:

Material list - $145.00

Unlimited builds - $595.00

Modify my plans*
    *Enter details during checkout.




Floor plan
J1224-17d Floor plan
Exterior view
J1224-17d Rendering

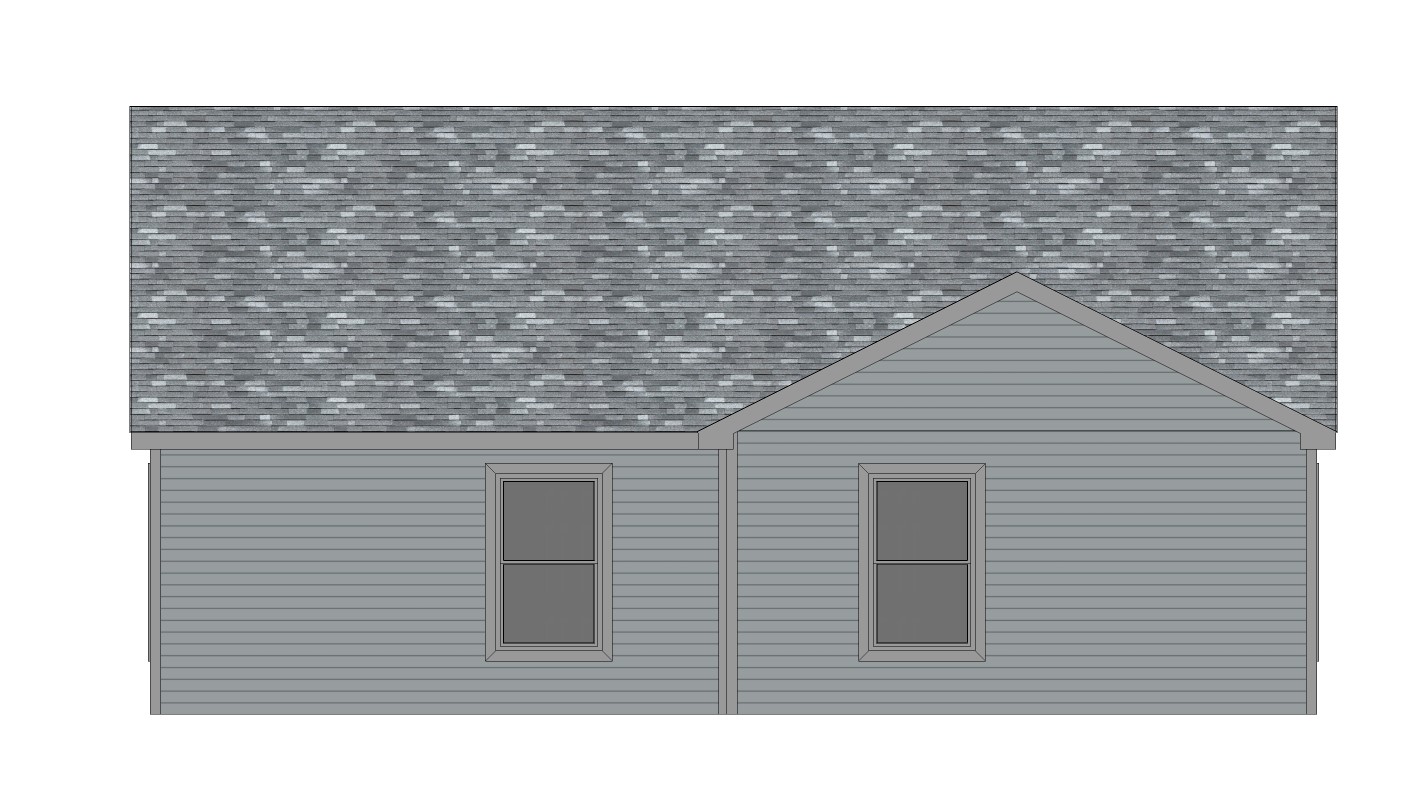

Rear elevation
 J1224-17d back view
