Duplex plans with 3 Bedrooms per unit
(Bedroom / bath listed are per unit)

Plan number and image

Description of units

Plan# J1067d

J1067d exterior
Open layout

Bedrooms: 3    Bath: 2
Living area: 2108 sq. ft.
Other: 136 sq. ft.
Total: 2244 sq. ft.

Each unit Living area: 1054 sq. ft.

Width: 78'-8"
Depth: 32'-0"

View floor plan

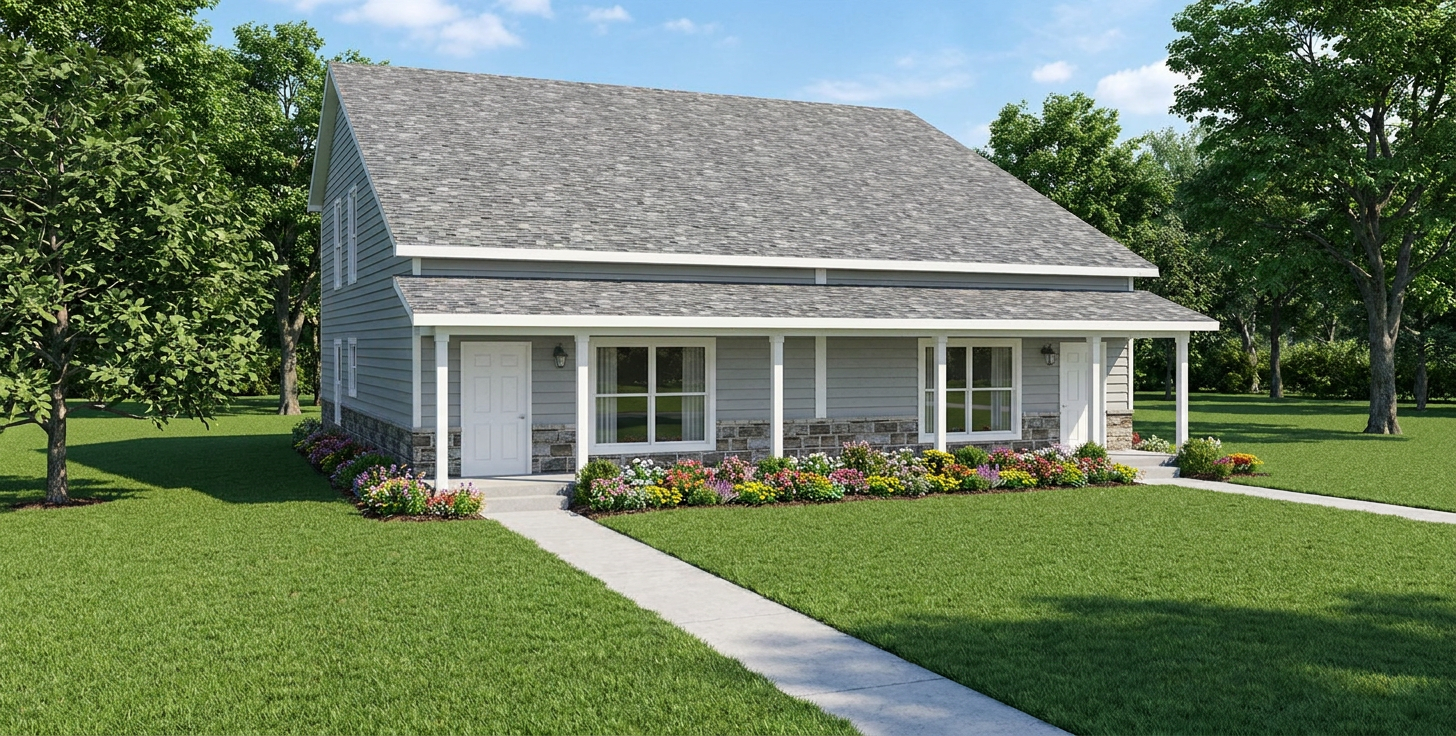

Plan# J0919-22d

J0919-22d exterior
Townhouse layout

Bedrooms: 3    Bath: 2
Living area: 2648 sq. ft.
Other: 184 sq. ft.
Total: 2832 sq. ft.

Each unit Living area: 1324 sq. ft.

Width: 40'-0"
Depth: 40'-6"

View floor plan



Plan# J1031d-20

J1031d-20 exterior
1 over 1 duplex

Bedrooms: 3    Bath: 2
Living area: 2592 sq. ft.
Other: 0 sq. ft.
Total: 2592 sq. ft.

Each unit Living area: 1296 sq. ft.

Width: 40'-0"
Depth: 40'-9"

View floor plan



Plan# S0119d-2

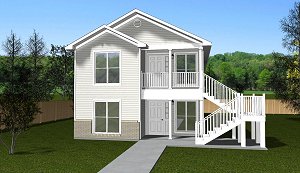

S0119d-2 exterior
1 over 1 duplex

Bedrooms: 3    Bath: 2
Living area: 2408 sq. ft.
Other: 175 sq. ft.
Total: 2580 sq. ft.

Each unit Living area: 1204 sq. ft.

Width: 23'-8"
Depth: 56'-10"

View floor plan

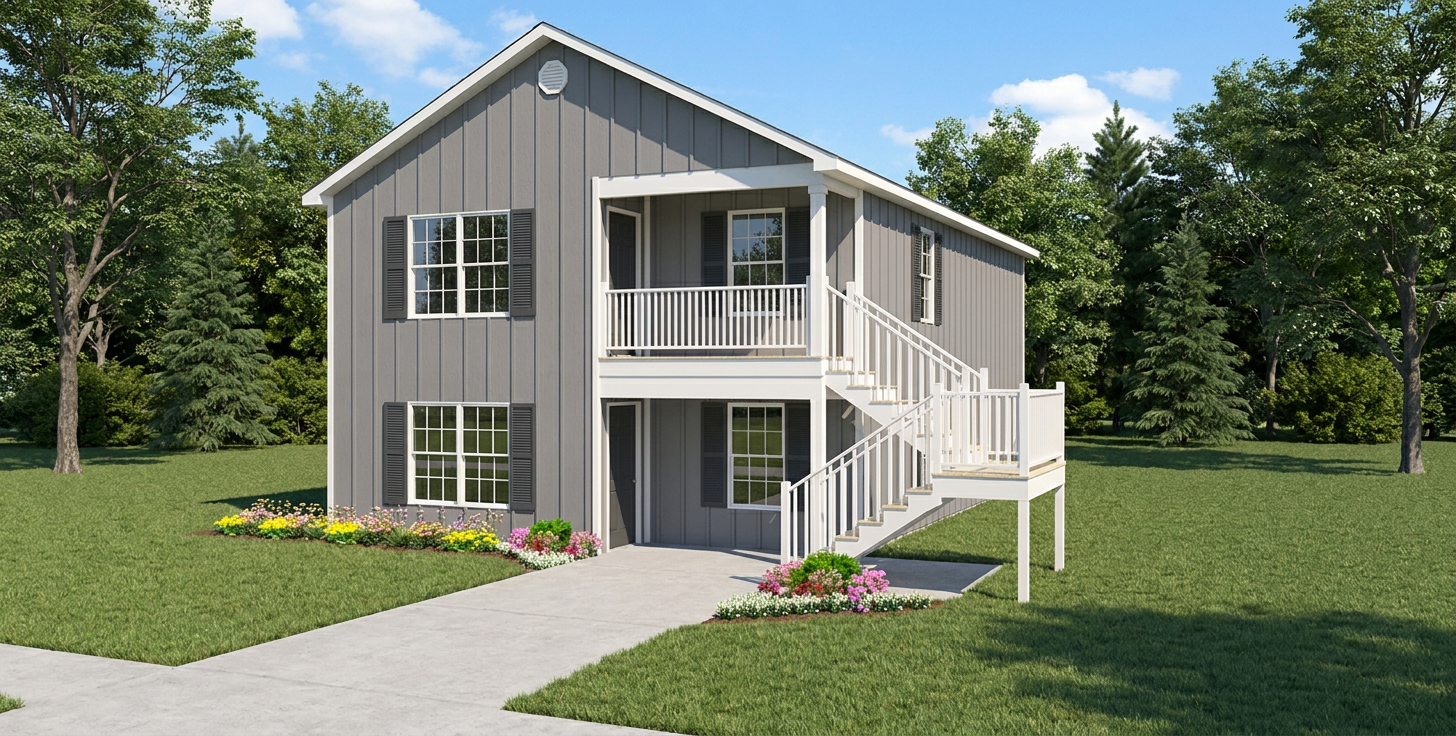

Plan# J2878d

J2878d exterior
Economical

3 bedroom / 1 bath
Living area: 2096 sq. ft.
Other: 96 sq. ft.
Total: 2192 sq. ft.

Each unit Living area: 1048 sq. ft.

Width: 51'-8"
Depth: 42'-5"

View floor plan

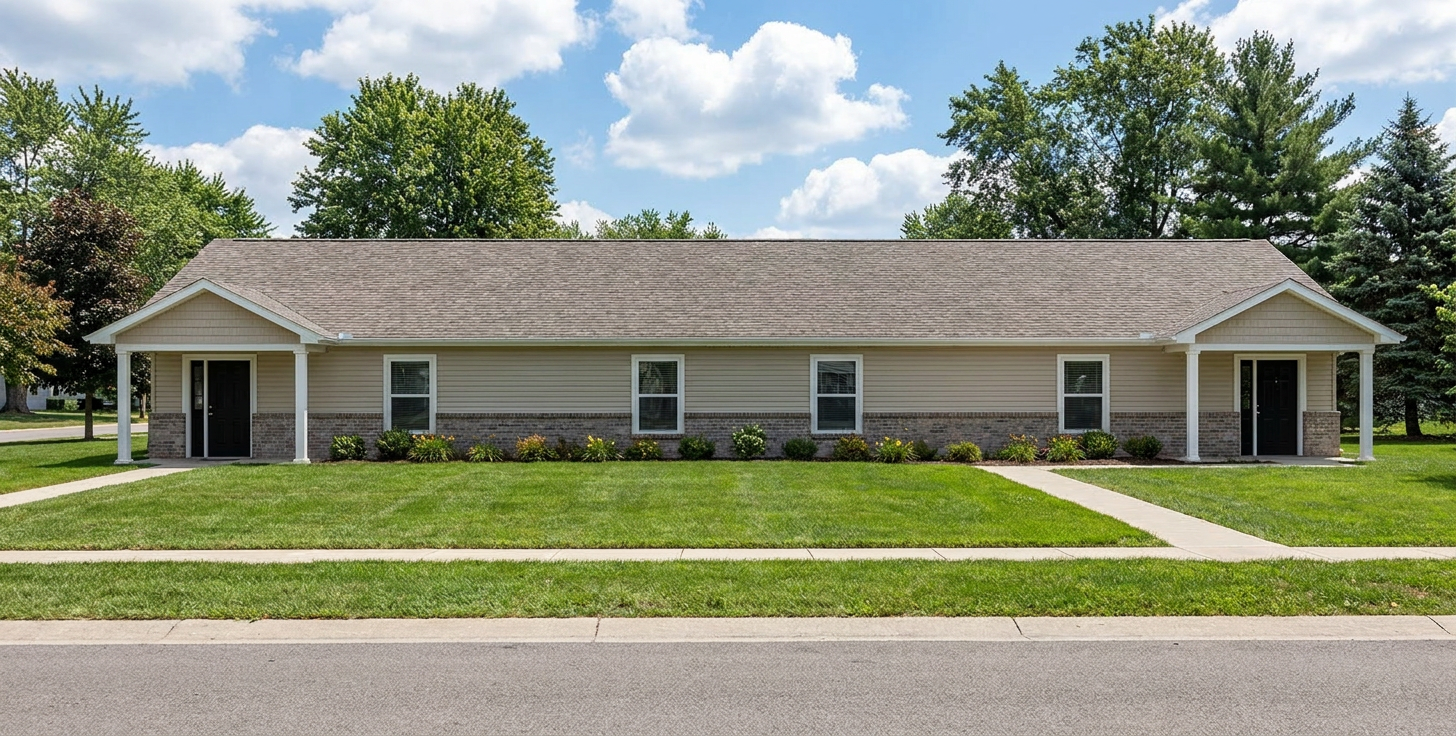

Plan# J0111-20d

J0111-20d exterior
Open concept

Bedrooms: 3    Bath: 2
Living area: 2352 sq. ft.
Other: 120 sq. ft.
Total: 2472 sq. ft.

Each unit Living area: 1176 sq. ft.

Width: 81'-0"
Depth: 33'-0"

View floor plan



Plan# J1031d-30

J1031d-30
Duplex

Bedrooms: 3    Bath: 2
Living area: 1996 sq. ft.
Other: 104 sq. ft.
Total: 2100 sq. ft.

Each unit Living area: 998 sq. ft.

Width: 70'-0"
Depth: 30'-0"

View floor plan



Plan# J1138d-2

J1138d-2
Duplex

Bedrooms: 3    Bath: 2
Living area: 2136 sq. ft.
Other: 138 sq. ft.
Total: 2274 sq. ft.

Each unit Living area: 1068 sq. ft.

Width: 25'-0"
Depth: 45'-6"

View floor plan

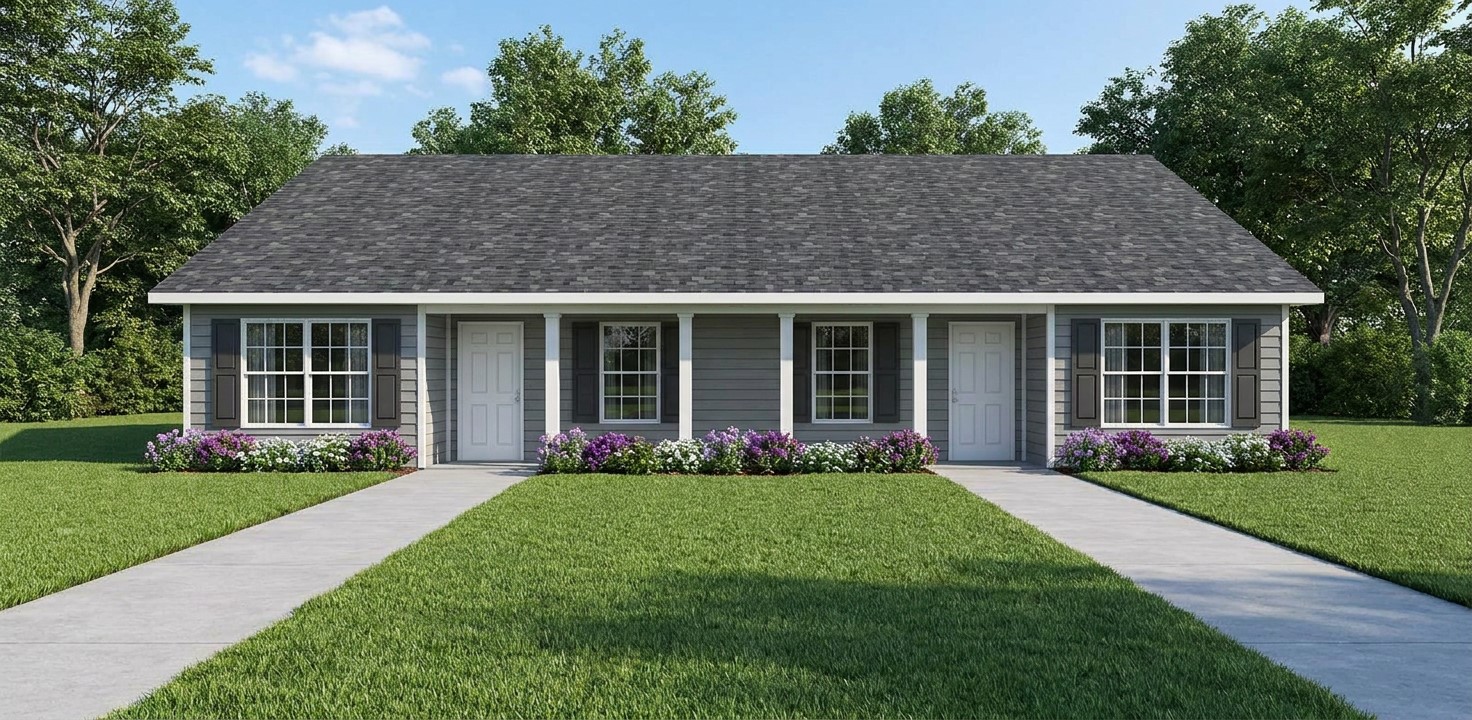

Plan# J1138d

J1138d
Duplex

Bedrooms: 3    Bath: 2
Living area: 2118 sq. ft.
Other: 115 sq. ft.
Total: 2233 sq. ft.

Each unit Living area: 1059 sq. ft.

Width: 50'-0"
Depth: 44'-8"

View floor plan



Plan# J1003-12d

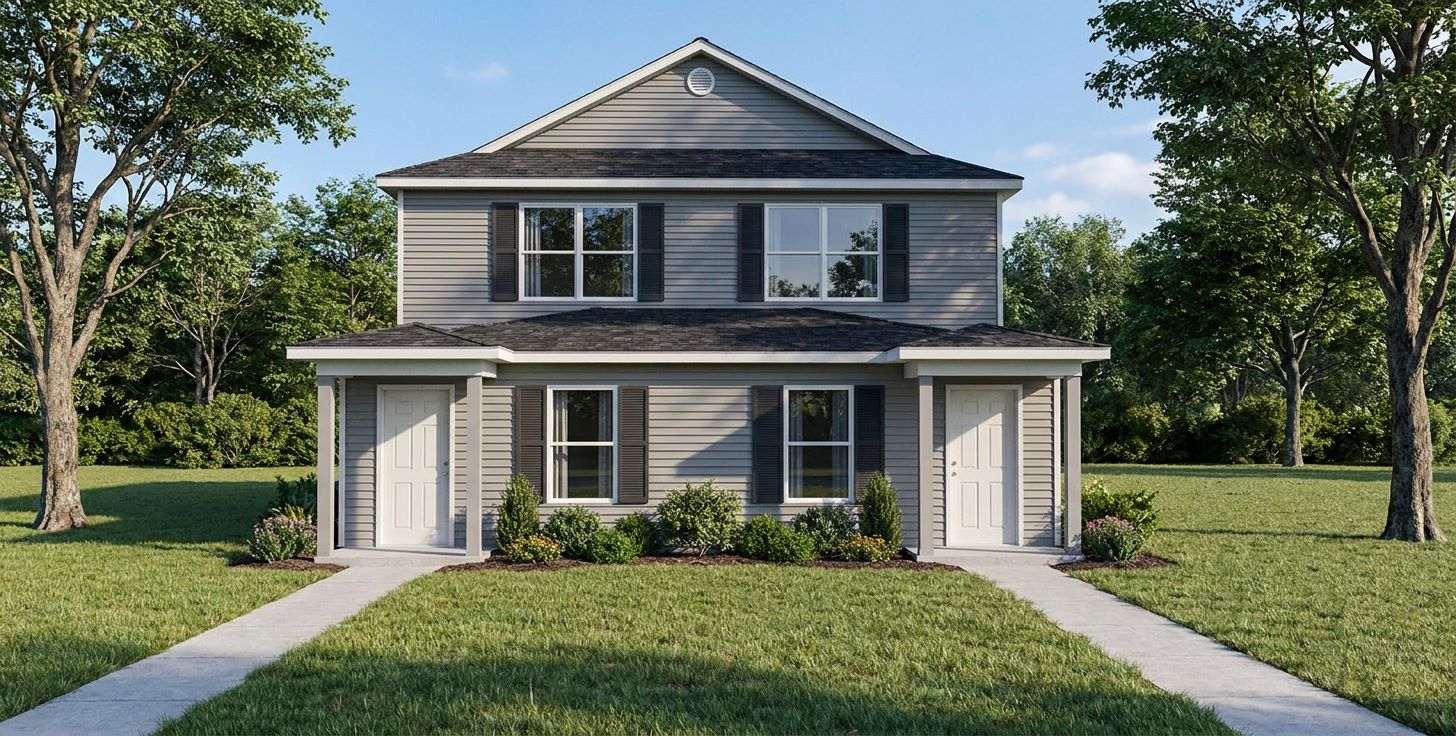

J1003-12d, townhouse
Townhouse duplex

3 bedroom / 2.75 bath
Living area: 2918 sq. ft.
Other: 52 sq. ft.
Total: 2970  sq. ft.

Each unit Living area: 1459 sq. ft.


Width: 30'-0"
Depth: 59'-0"

View floor plan



Plan# J0826-11d

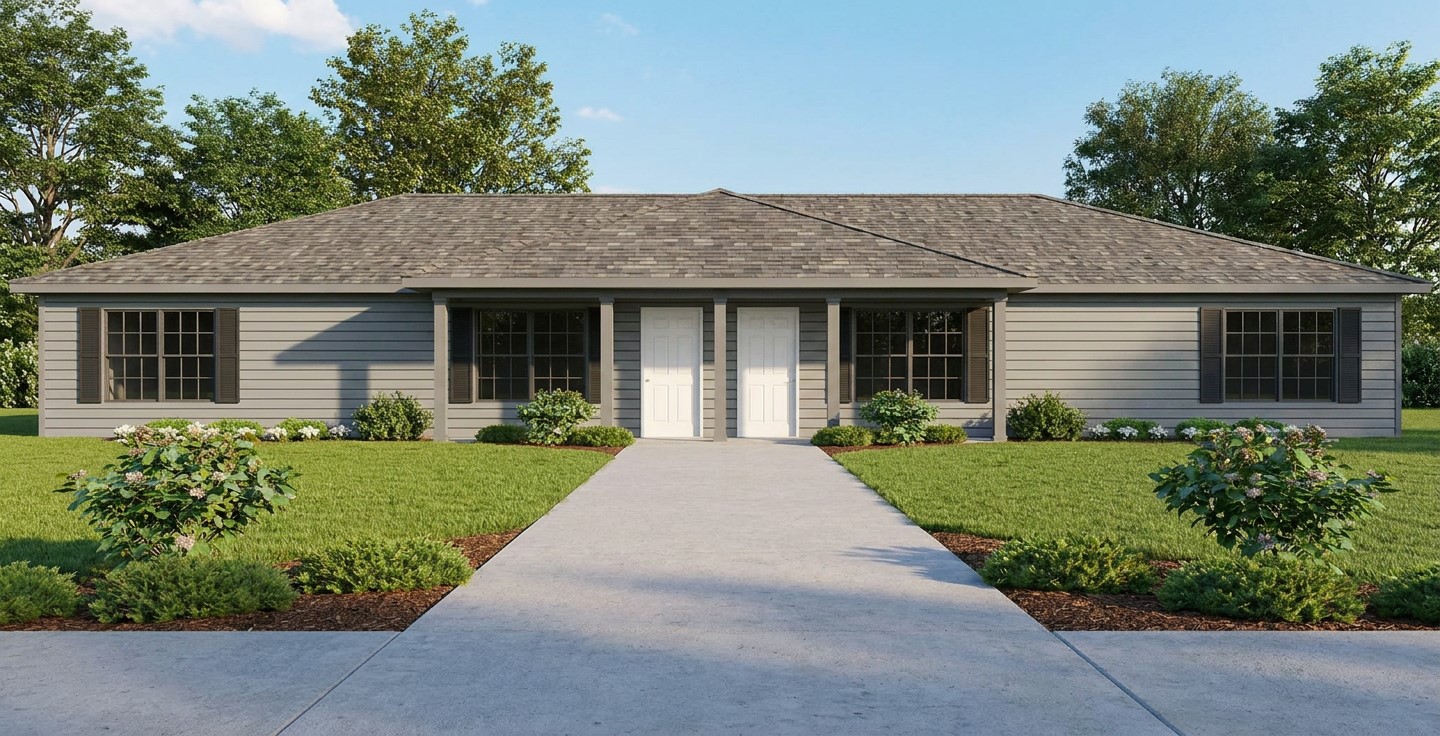

J0826-11d
Walk-in closets

Bedrooms: 3    Bath: 2
Living area: 2100 sq. ft.
Other: 112 sq. ft.
Total: 2212  sq. ft.
*areas shown above are total building.

Each unit Living area: 1050 sq. ft.


Width: 70'-0"
Depth: 34'-0"


View floor plan



Plan# J1389d

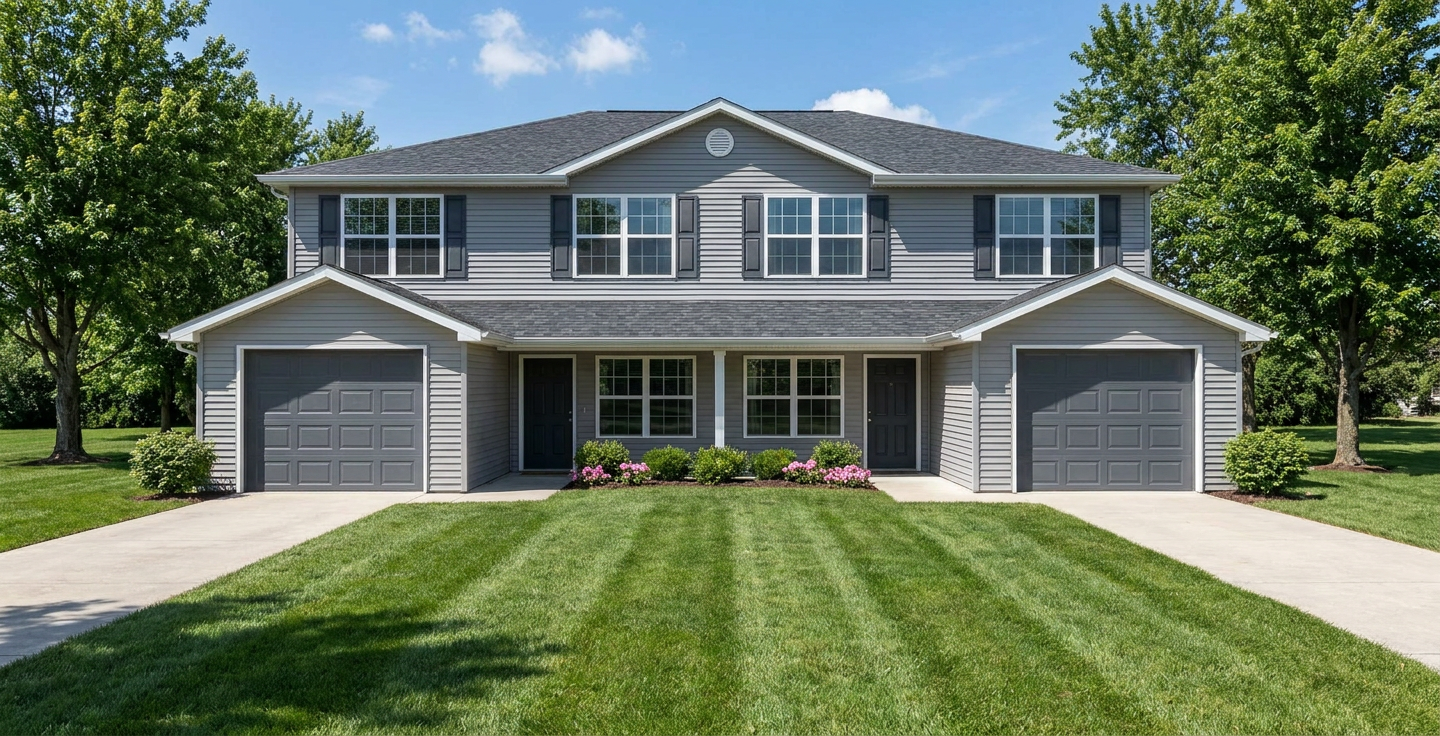

J1389d, 3 bedroom duplex with garage
Single garage per unit

Bedrooms: 3    Bath: 1.5
Living area= 2892 sq. ft.
Other= 604 sq. ft.
Total= 3496  sq. ft.
*areas shown above are total building.

Each unit Living area: 1446 sq. ft.


Width: 50'-0"   Depth: 44'-10"


View floor plan



Plan# J0617-11d

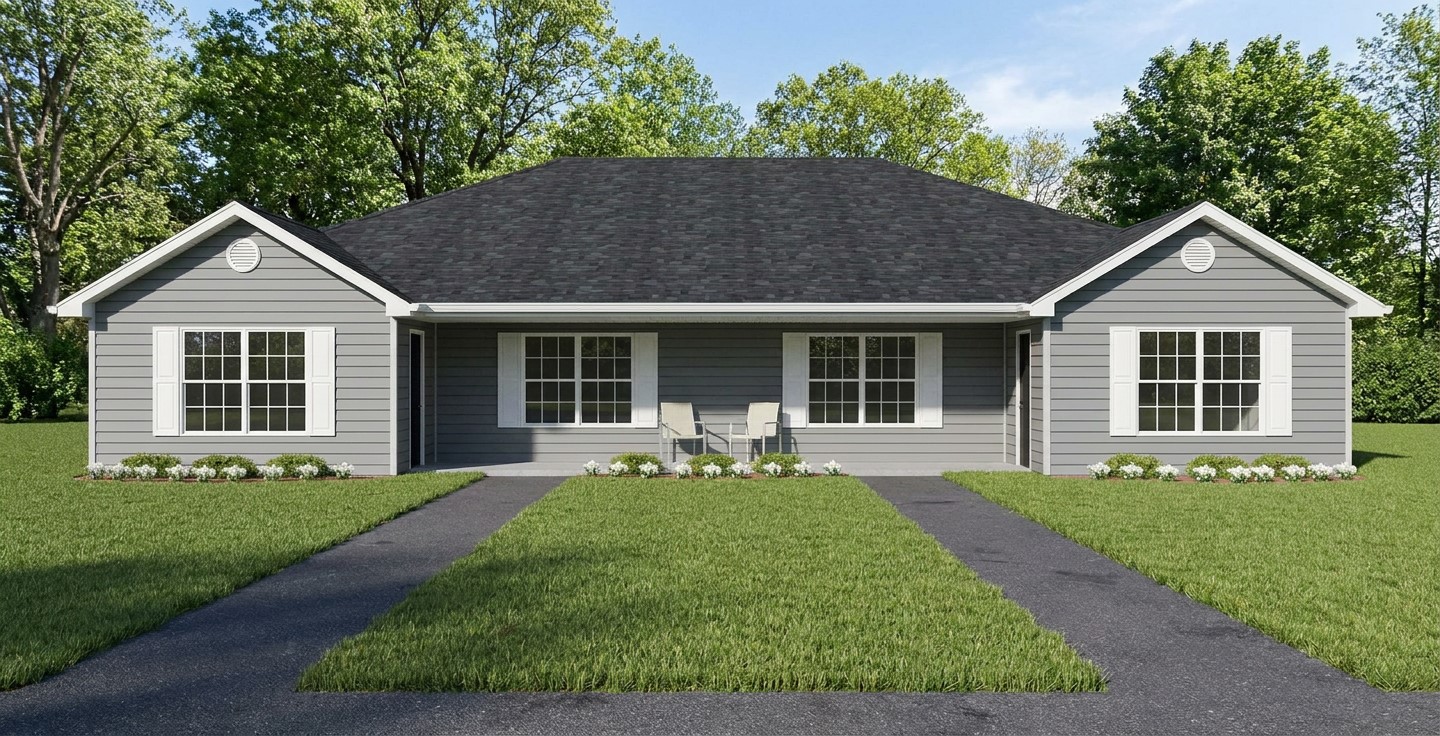

J0617-11d
Walk-in closets

Bedrooms: 3    Bath: 2
Living area: 2746 sq. ft.
Other: 210 sq. ft.
Total: 2956  sq. ft.
*areas shown above are total building.

Each unit Living area: 1373 sq. ft.


Width: 57'-5"
Depth: 52'-0"


View floor plan



Plan# J0606-11d

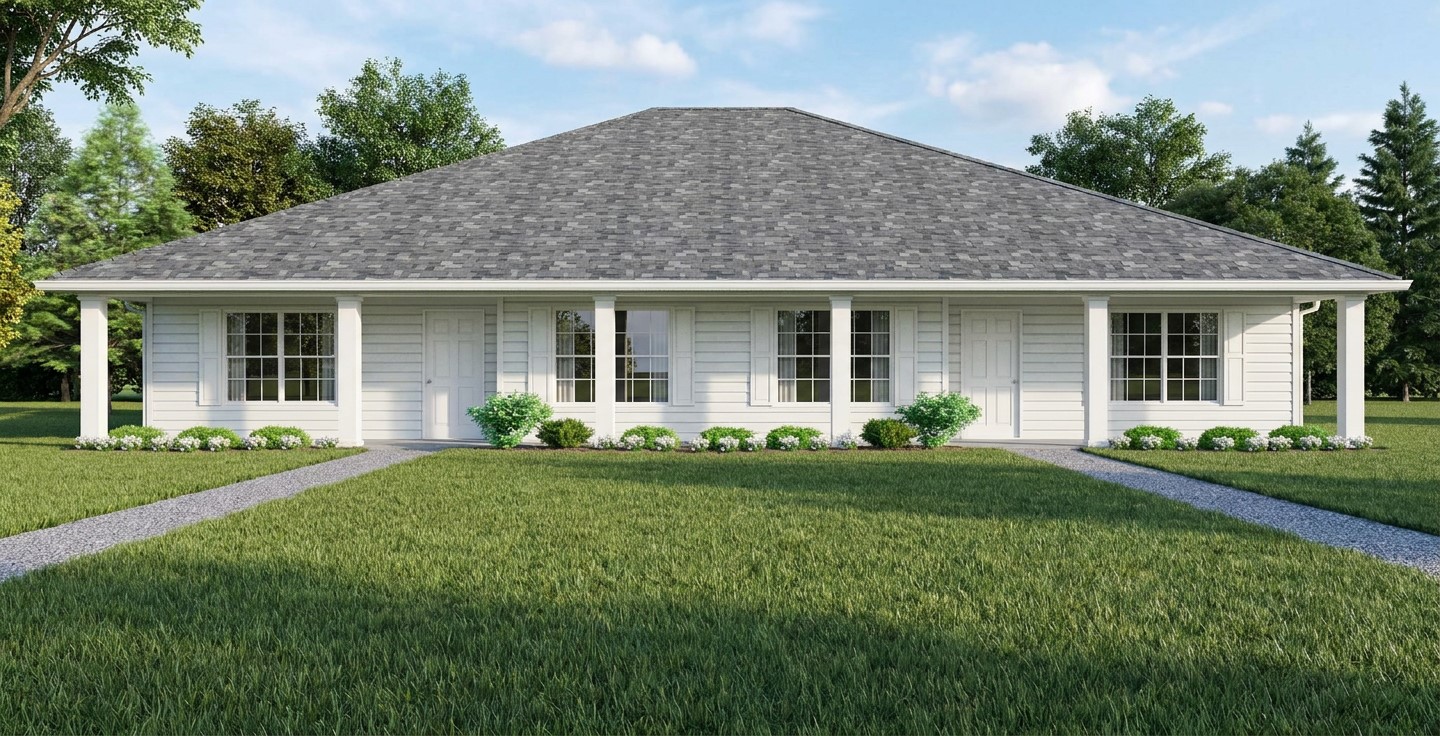

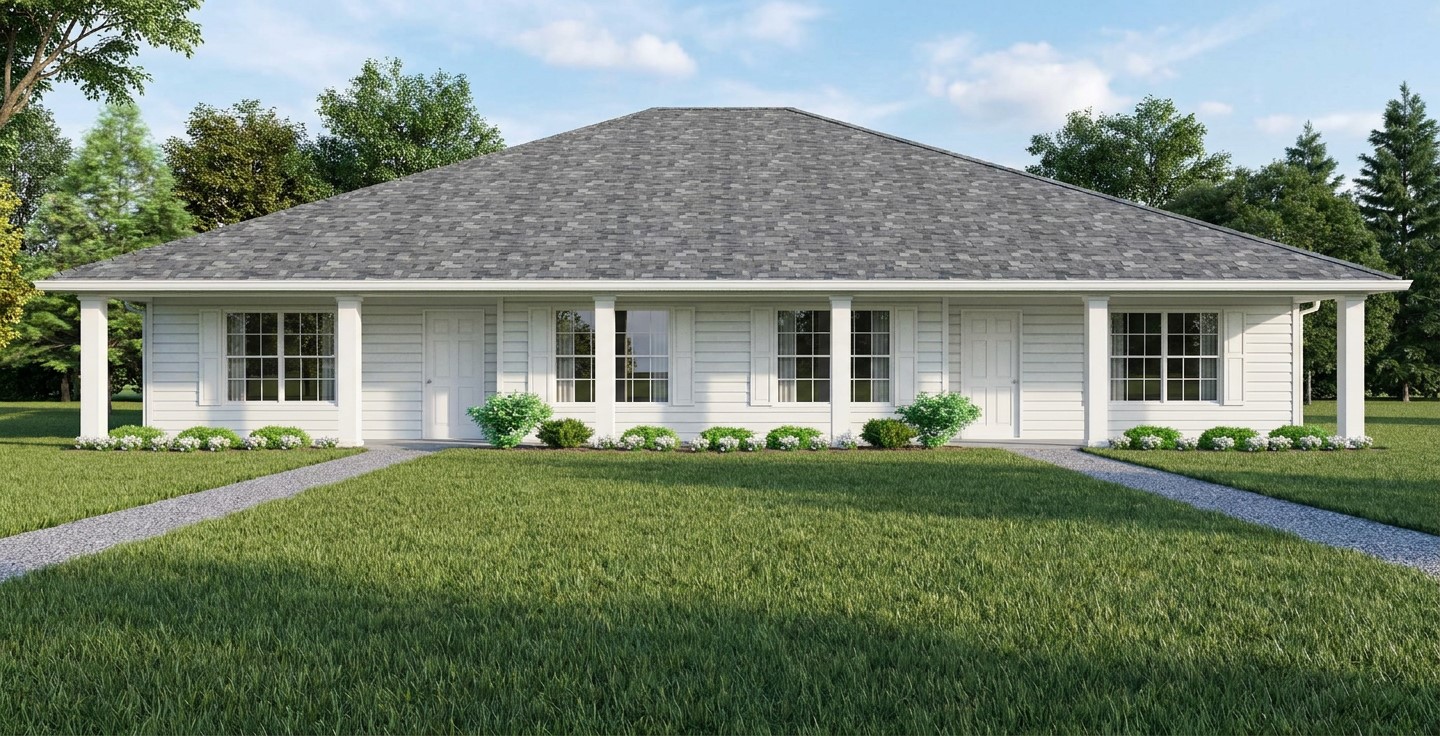

J0606-11d, duplex design
Spacious living

Bedrooms: 3    Bath: 2
Living area: 2702 sq. ft.
Other: 348 sq. ft.
Total: 3050  sq. ft.
*areas shown above are total building.

Each unit Living area: 1351 sq. ft.


Width: 60'-0"
Depth: 50'-10"


View floor plan



Plan# J0406-11d

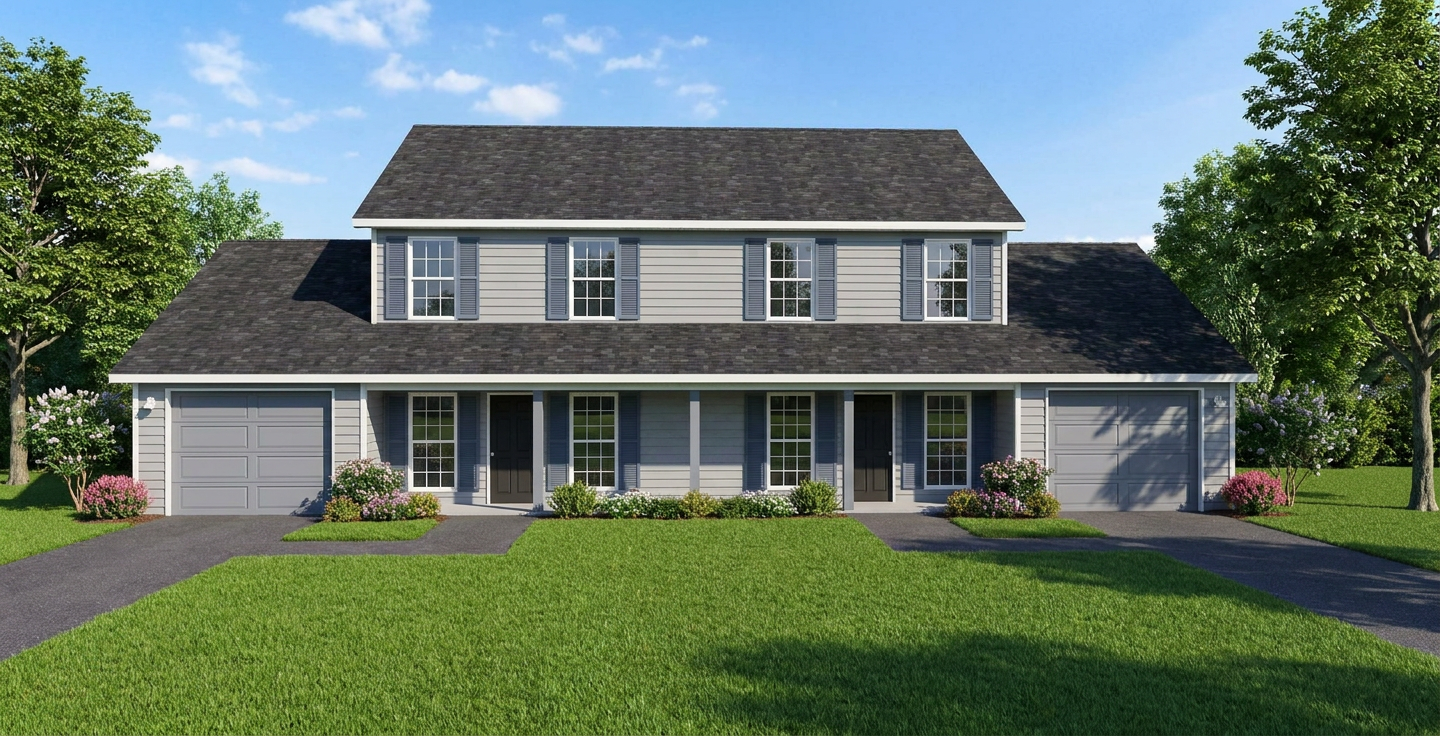

J0406-11d, 2-story duplex with garages
Garage per unit

Bedrooms: 3    Bath: 2
Living area: 2804 sq. ft.
Other: 694 sq. ft.
Total: 3498  sq. ft.
*areas shown above are total building.

Each unit Living area: 1402 sq. ft.


Width: 62'-0"
Depth: 38'-10"


View floor plan



Plan# J09053db

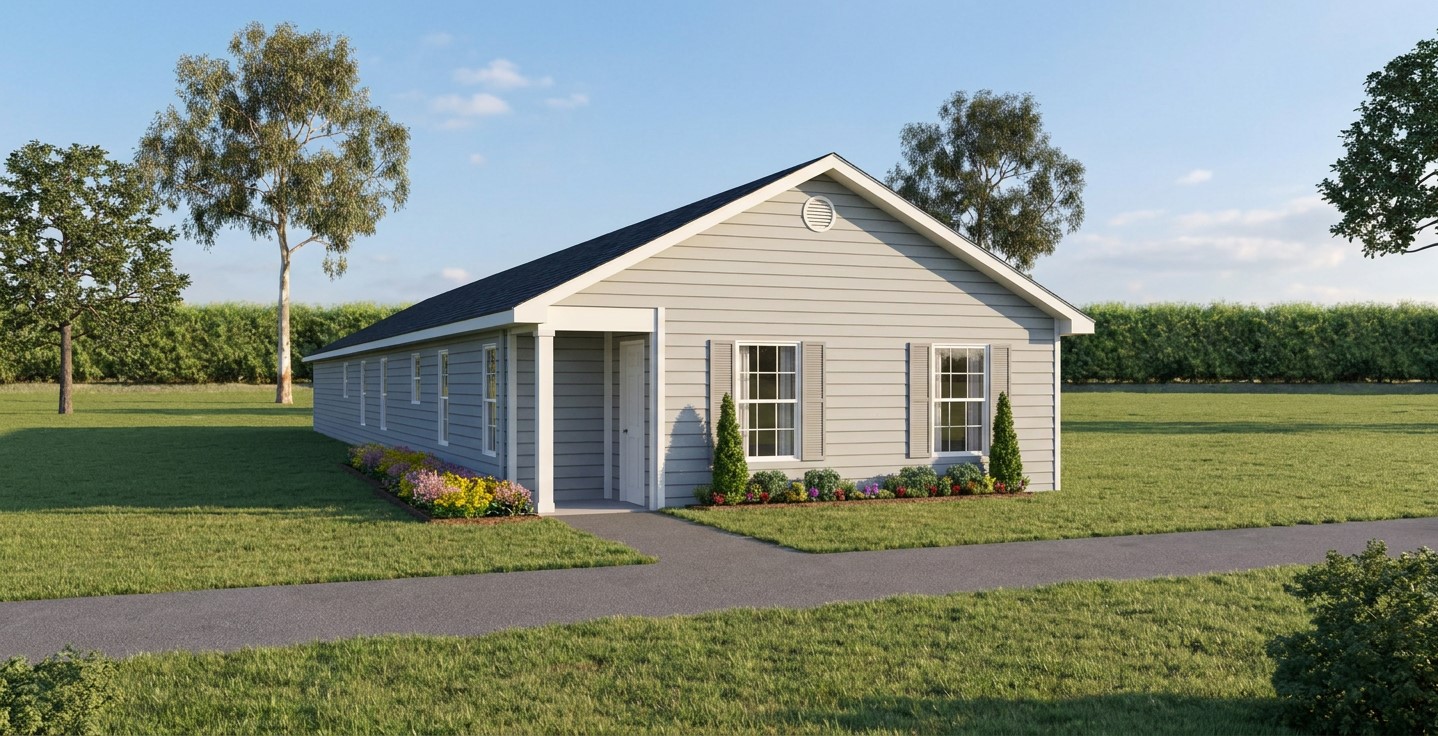

J09053db, narrow lot design
Narrow lot design offering flexibility.

3 bedrooms / 2 bath
Living area: 2110 sq. ft.
Other: 96 sq. ft.
Total area: 2206 sq. ft.
*areas shown above are total building.

Each unit Living area: 1055 sq. ft.


Width: 24'-0"   Depth: 92'-0"


View floor plan

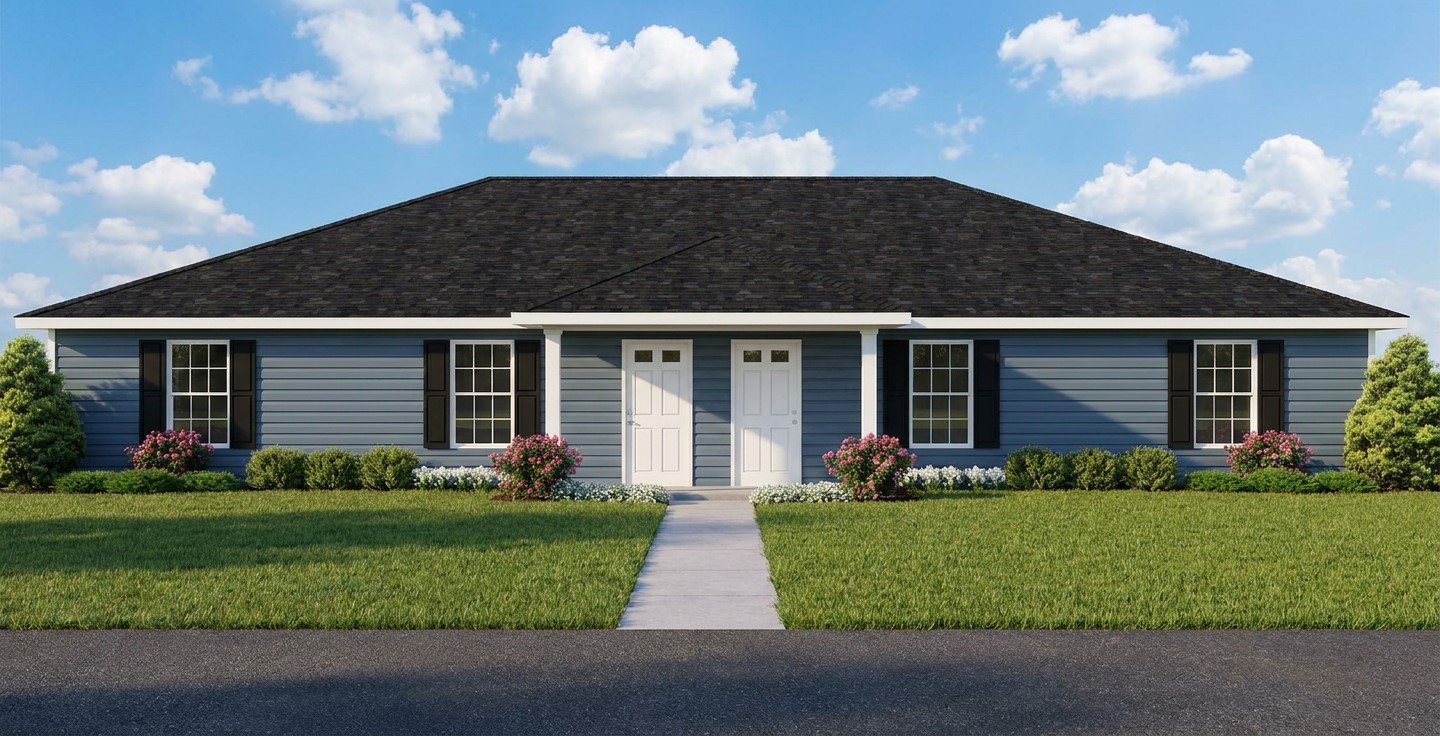

Plan# J09092d

J09092d

Bedrooms: 3    Bath: 2
Living area= 2020 sq. ft.
Other= 70 sq. ft.
Total= 2090  sq. ft.
*areas shown above are total building.

Each unit Living area: 1010 sq. ft.


Width: 60'-0"
Depth: 38'-8"


View floor plan

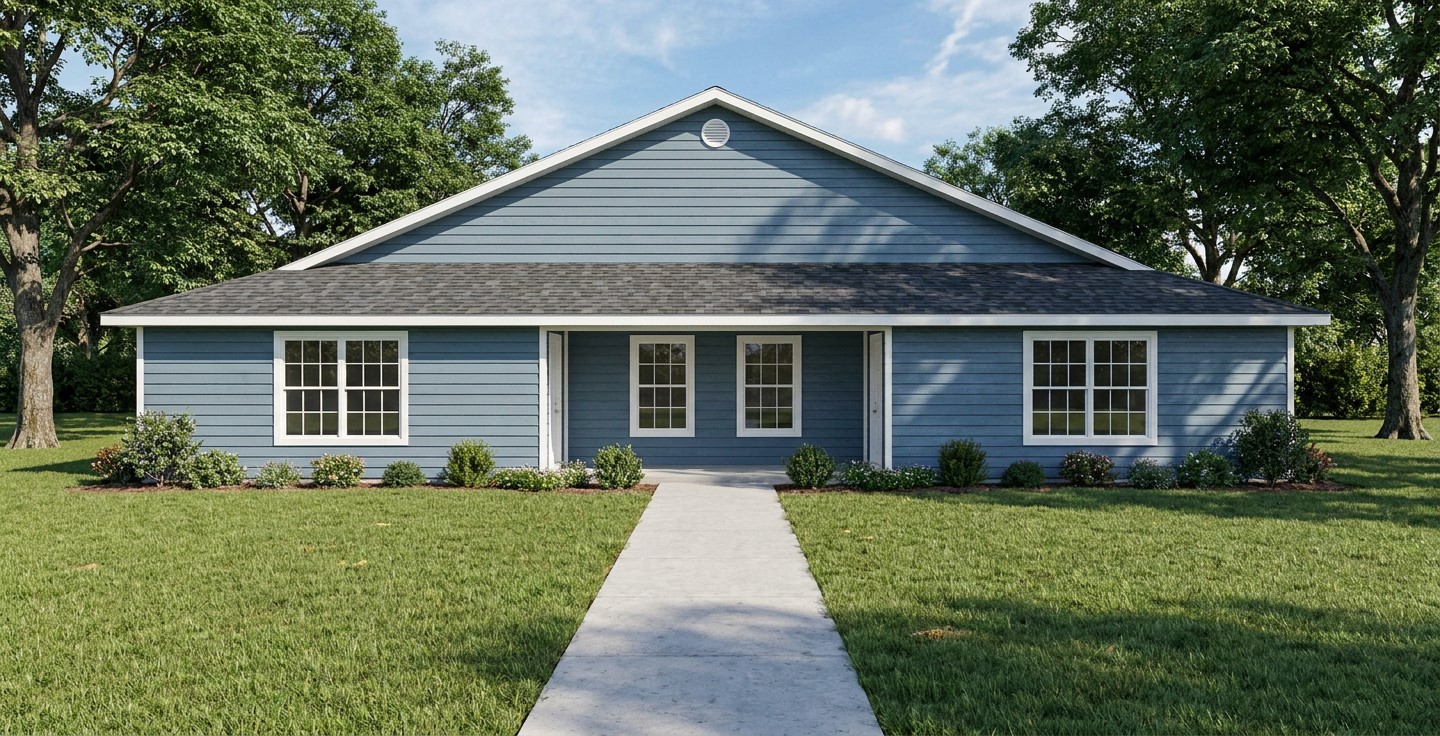

Plan# J1839db2

J1839d-b2 RenderingSm.jpg (10321 bytes)
Simple and economical construction

3 bedroom/ 1.5 bath
Living area= 2186 sq. ft.
Other= 120 sq. ft.
Total= 2306 sq. ft.
*areas shown above are total building.

Each unit Living area: 1093 sq. ft.


Width: 55'   Depth: 41'-11"


View floor plan



Plan# J0907d

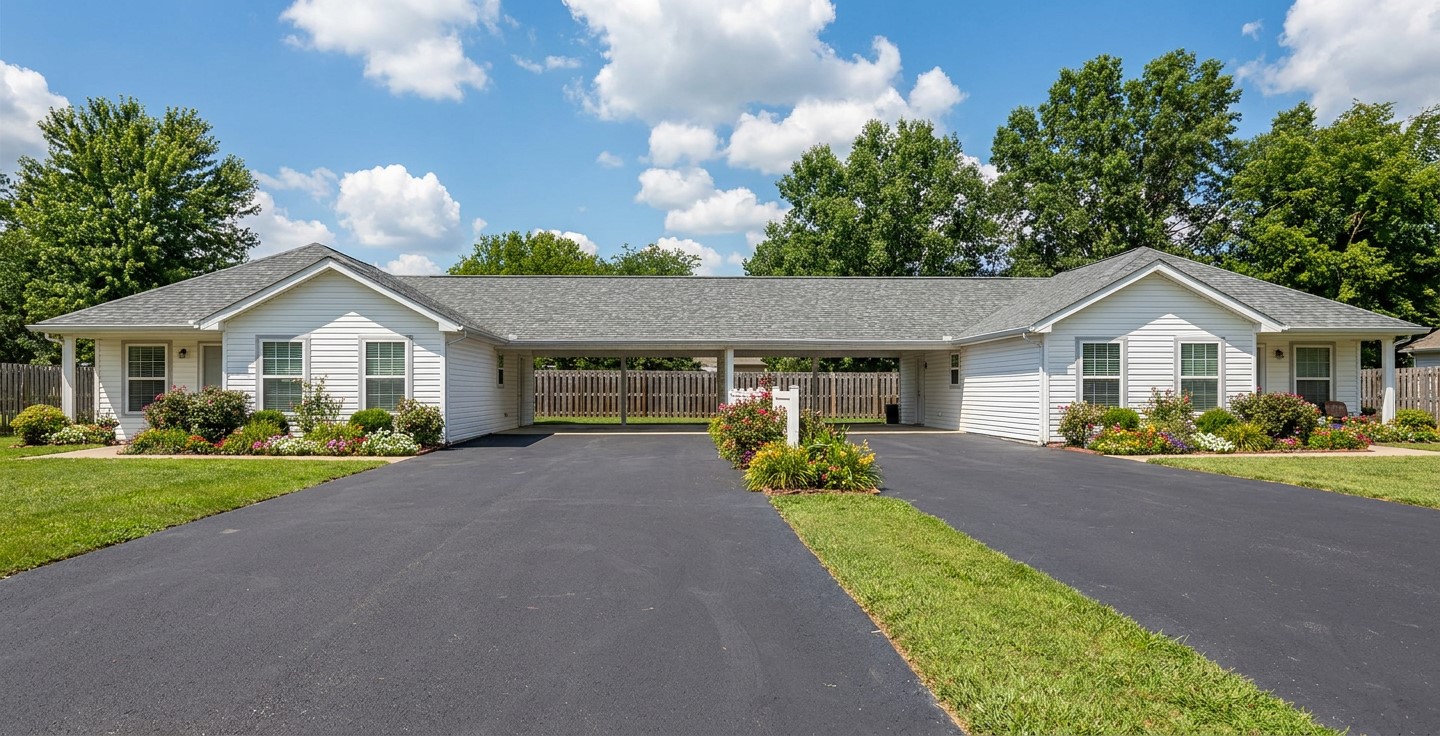

J0907d, duplex with double carports
Double carport per unit

3 bedrooms / 2 bath
Living area: 2376 sq. ft.
Other: 1177 sq. ft.
Total area: 3553 sq. ft.
*areas shown above are total building.

Each unit Living area: 1188 sq. ft.


Width: 91'-8"   Depth: 51'-9"


View floor plan



Plan# J1839db

J1839d-b RenderThumb.jpg (3910 bytes)
Simple and economical construction

3 bedroom/ 1.5 bath
Living area= 2124 sq. ft.
Other= 114 sq. ft.
Total= 2238 sq. ft.
*areas shown above are total building.

Each unit Living area: 1062 sq. ft.


Width: 54'   Depth: 41'-5"


View floor plan



Plan# J0801d

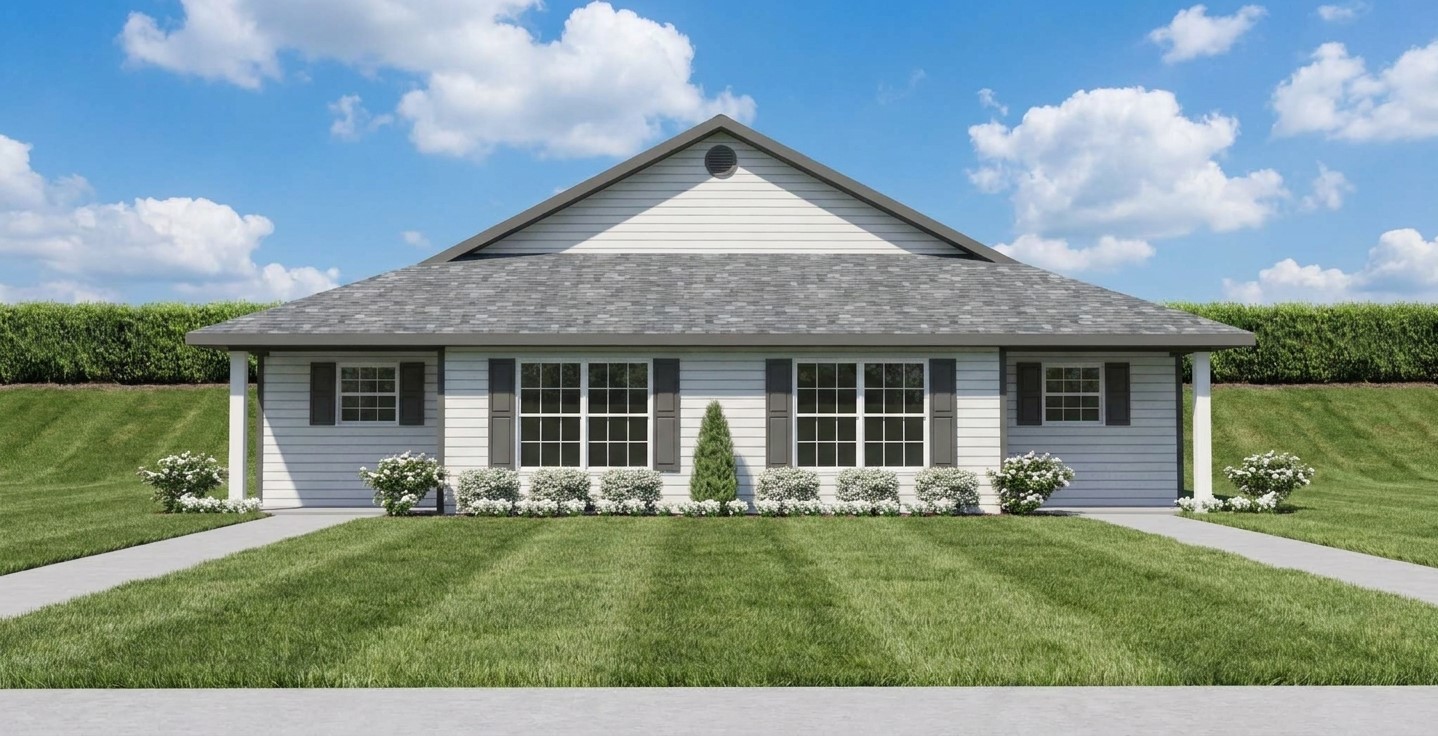

J0801d RenderingSm.jpg (4859 bytes)

Bedrooms: 3    Bath: 2
Living area= 1982 sq. ft.
Other= 82 sq. ft.
Total= 2064  sq. ft.
*areas shown above are total building.

Each unit Living area: 991 sq. ft.


Width: 43'   Depth: 48'


View floor plan



Plan# J0801db

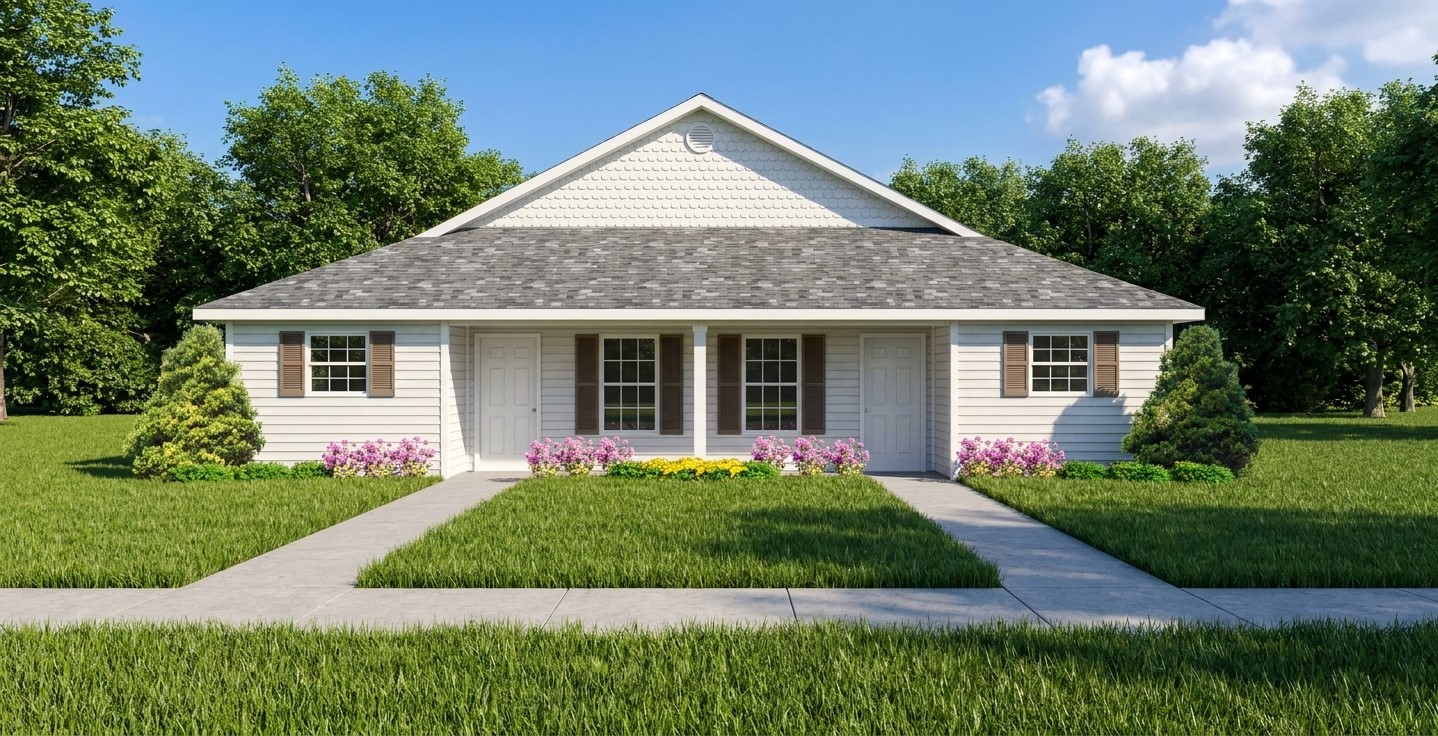

J-0801db renderingsm.jpg (4384 bytes)

Bedrooms: 3    Bath: 2
Living area= 2140 sq. ft.
Other= 94 sq. ft.
Total= 2234  sq. ft.
*areas shown above are total building.

Each unit Living area: 990 sq. ft.


Width: 43'-0"   Depth: 52'-0"


View floor plan



Plan# J1093d

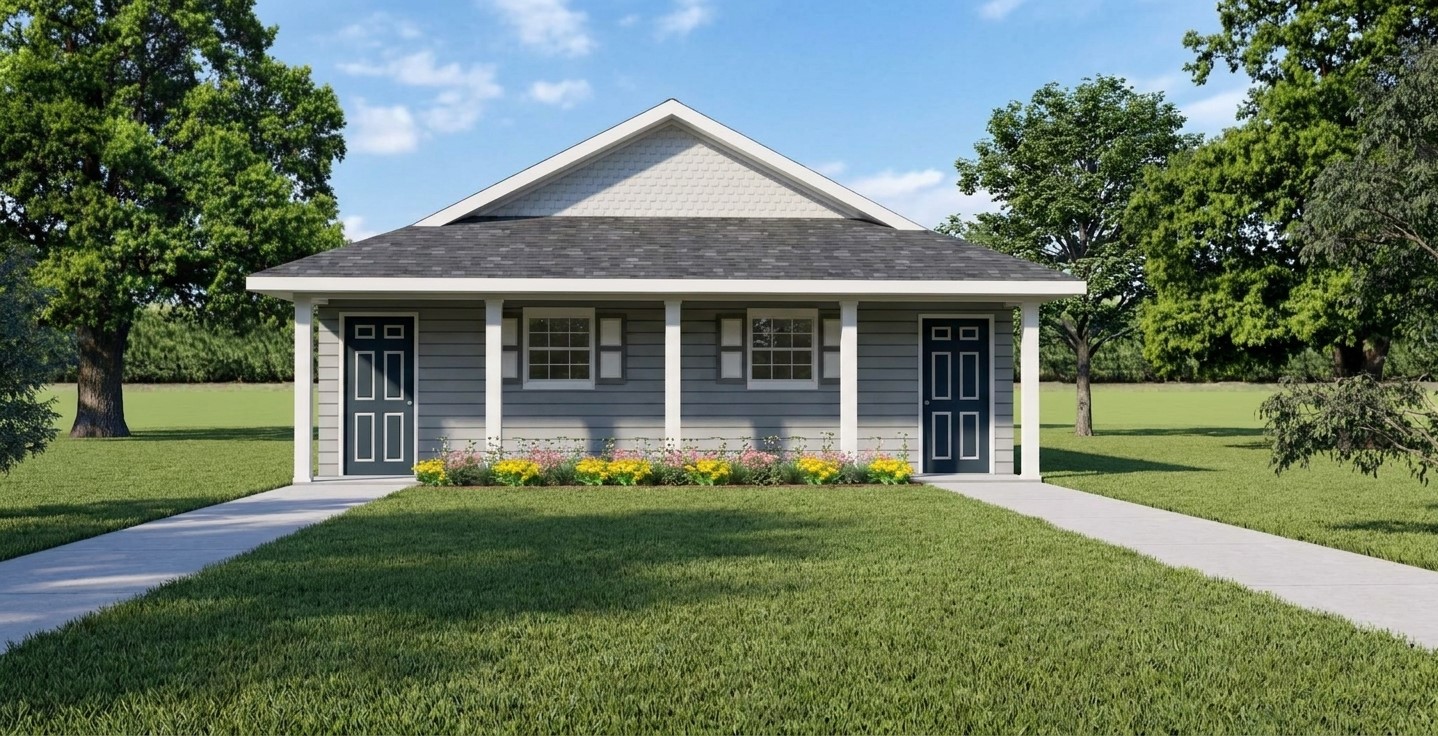

J1093d RenderingSm.jpg (4403 bytes)
Designed for Narrow Lots

Bedrooms: 3    Bath: 2
Living area= 1093 sq. ft.
Other= 63 sq. ft.
Total= 1156 sq. ft.
*areas shown above are per unit.

Total building Living area: 2186 sq. ft.

Width: 29'-0   Depth: 81'-2"


View floor plan

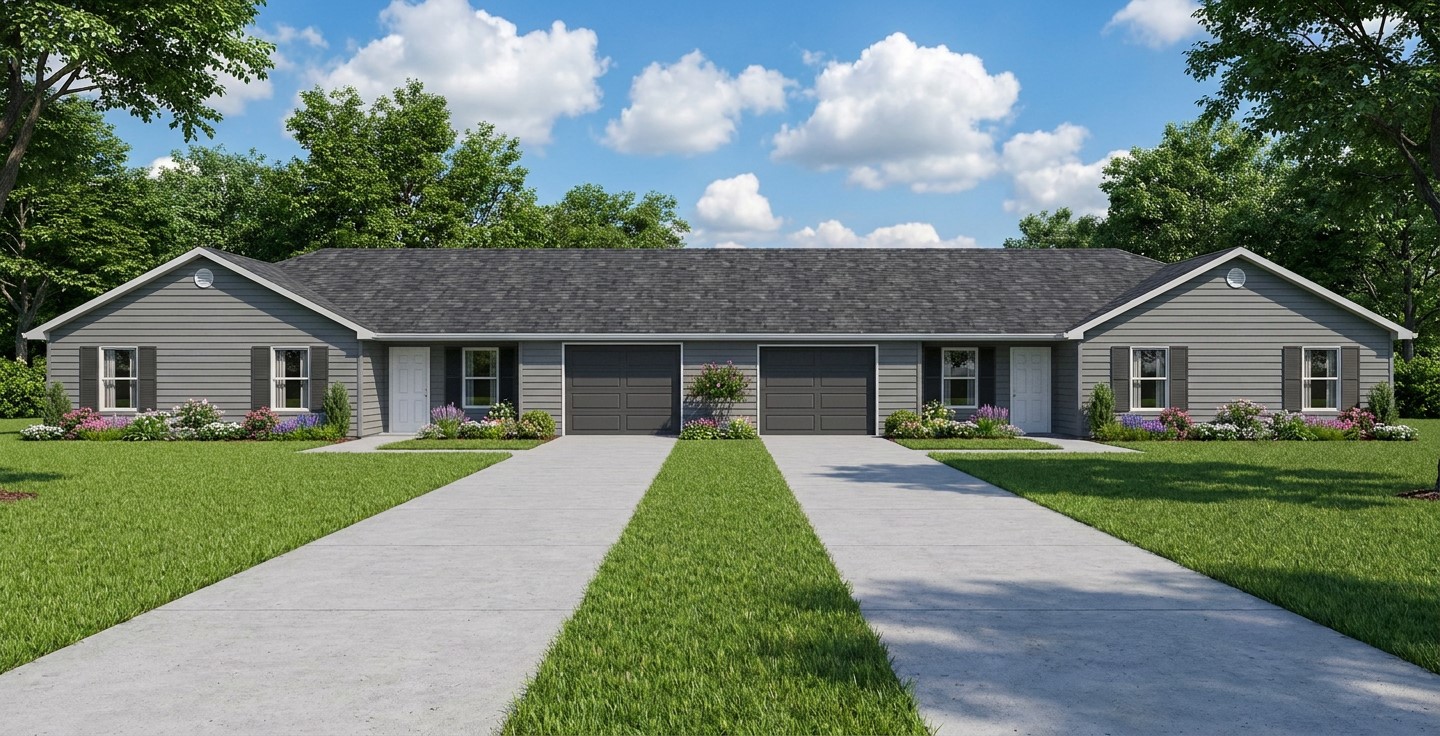

Plan# J1031dg

J1031d-G, garage per unit

Bedrooms: 3    Bath: 2
Living area= 1059 sq. ft.
Other= 491 sq. ft.
Total= 1550 sq. ft.
*areas shown above are per unit.

Total building Living area: 2118 sq. ft.

Width: 100'   Depth: 32'

View floor plan



Plan# J1031d

J1031d Rendering Thumbnail.jpg (4980 bytes)
Our most popular 3 bed duplex.

Bedrooms: 3    Bath: 2
Living area= 1031 sq. ft.
Other= 48 sq. ft.
Total= 1079 sq. ft.
*areas shown above are per unit.

Total building Living area: 2062 sq. ft.

Width: 70'   Depth: 31'-6"

View floor plan



Plan# J1153d

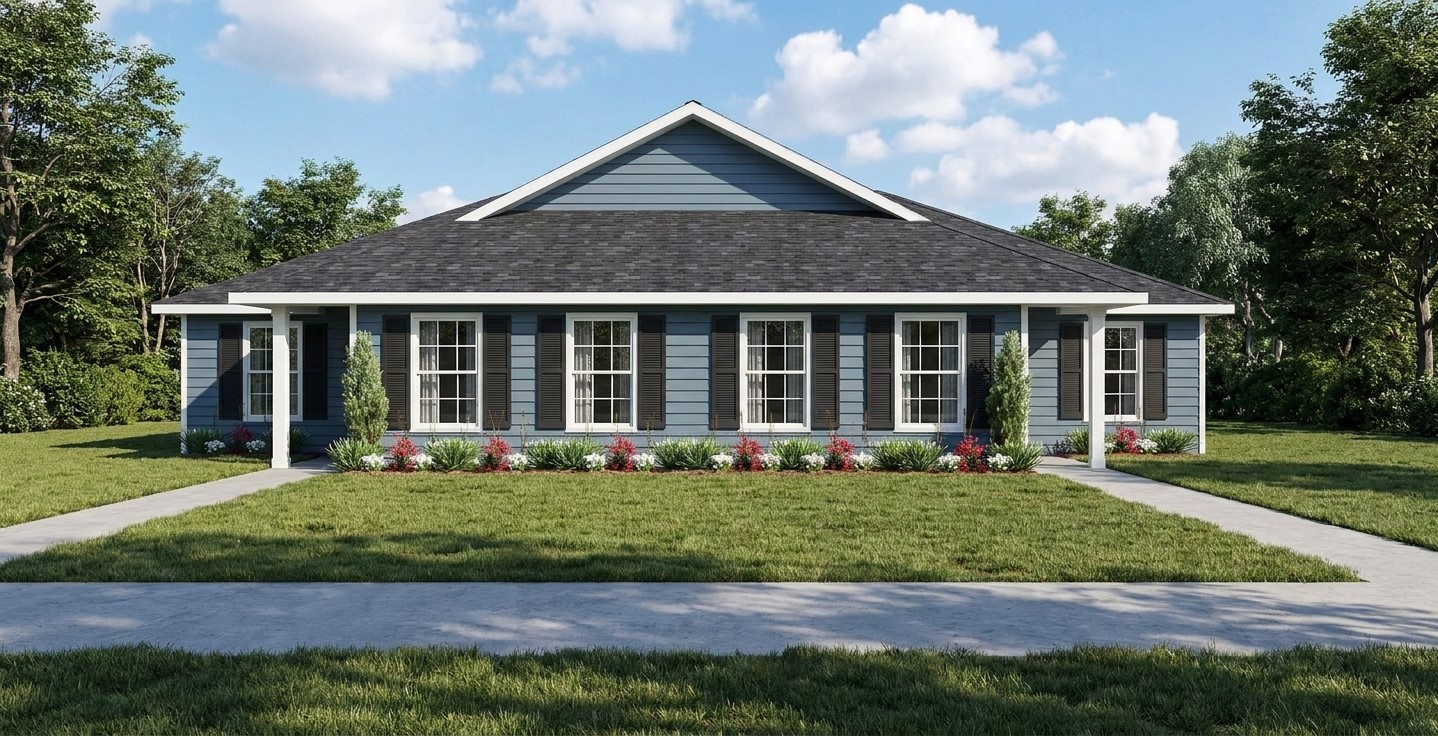

J1153d RenderingThumb.jpg (7641 bytes)

3 bedrooms / 2 bath
Living area= 1153 sq. ft.
Other= 39 sq. ft.
Total= 1192 sq. ft.
*areas shown above are per unit.

Total building Living area: 2306 sq. ft.

Width: 52'-8"   Depth: 48'-2"

View floor plan

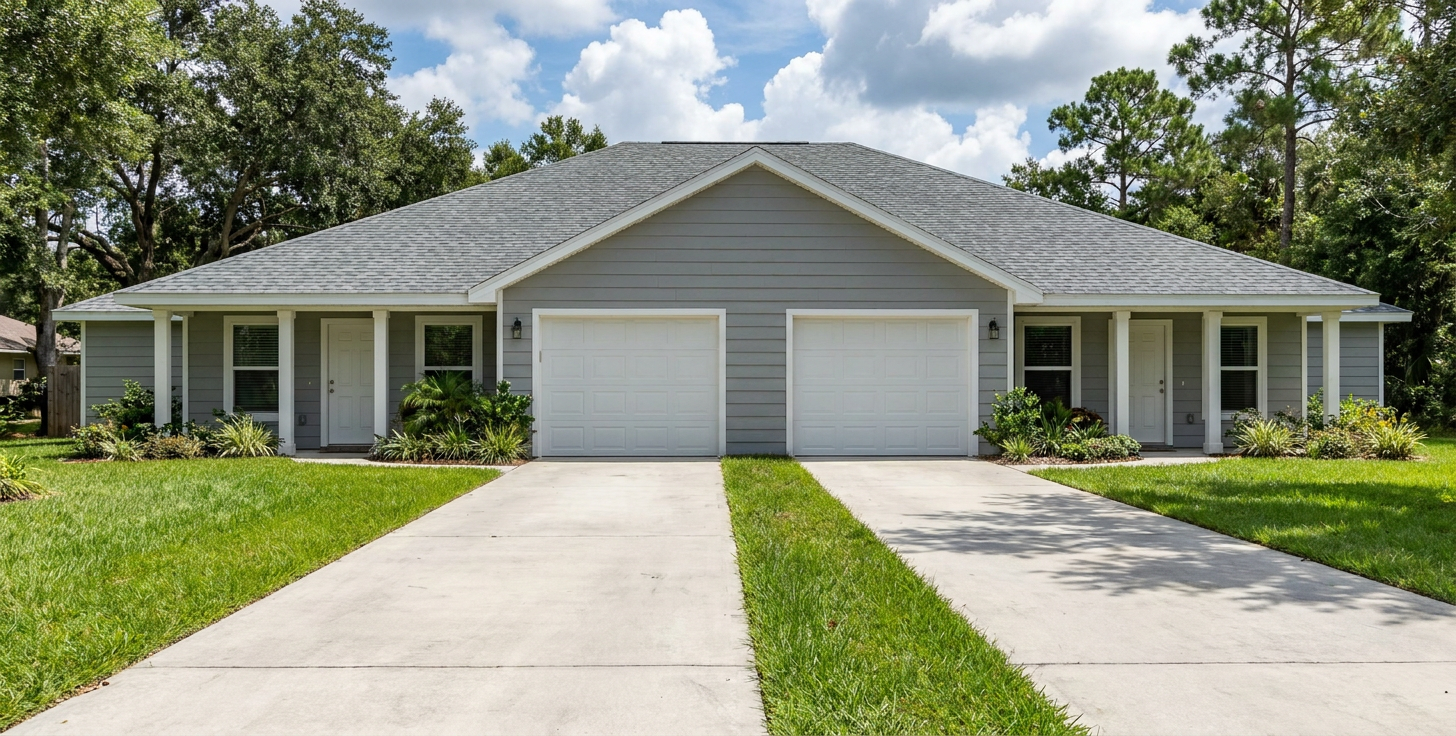

Plan# J1075d

J1075d, duplex design with garages
Single garage per unit

3 bedrooms / 2 bath
Living area= 1075 sq. ft.
Other= 364 sq. ft.
Total= 1439 sq. ft.
*areas shown above are per unit.

Total building Living area: 2150 sq. ft.

Width: 81'-8"   Depth: 41'-0

View floor plan



Plan# J1255d

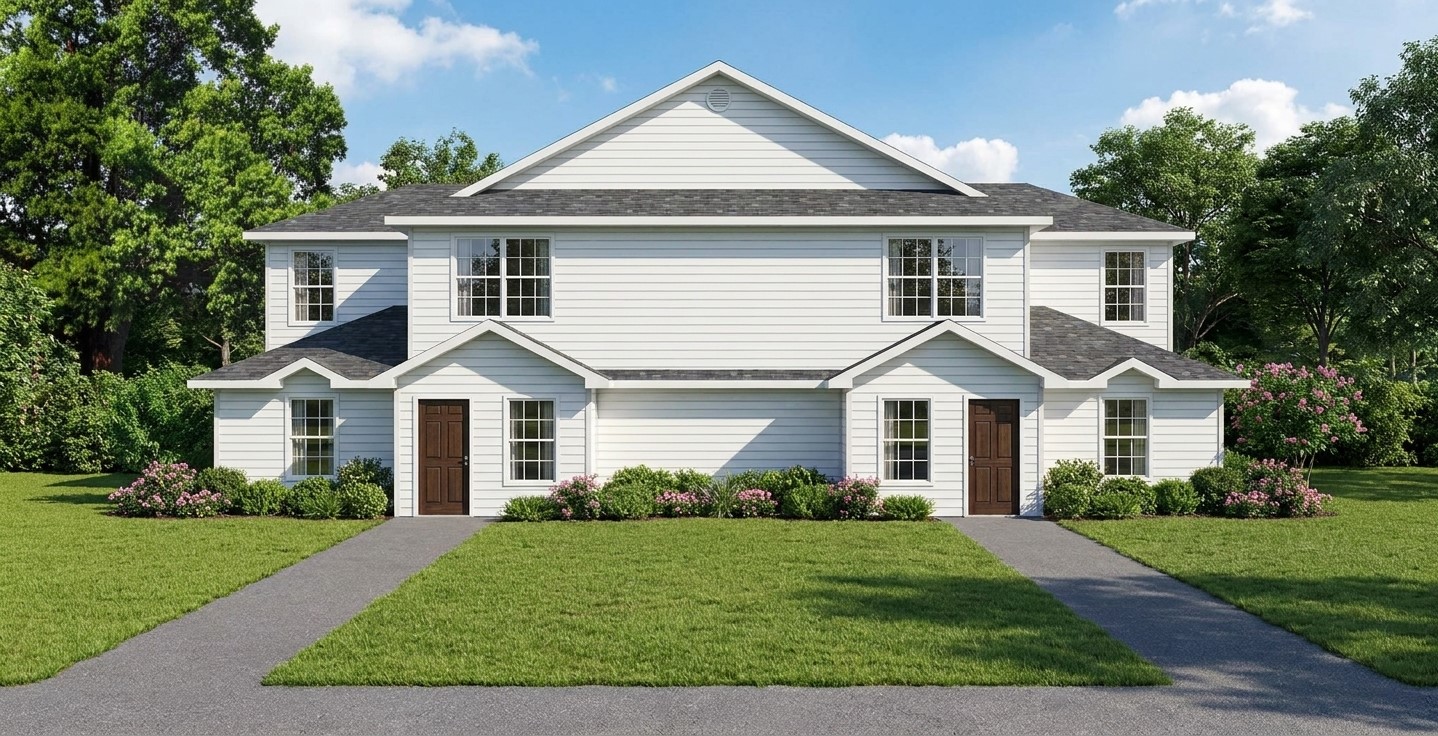

J1255d RenderingSm.jpg (6755 bytes)
2 story - split plan

Bedrooms: 3    Bath: 2
Living area: 1255 sq. ft.
Total: 1255  sq. ft.
*areas shown above are per unit.

Total building Living area: 2510 sq. ft.

Width: 59'-4"   Depth: 26'-6"

View floor plan



Plan# S0119-d

S0119-d exterior view

Bedrooms: 3    Bath: 2
Living area: 2312 sq. ft.
Other: 138 sq. ft.
Total: 2450  sq. ft.


Width: 46'-5"   Depth: 55'-2"

View floor plan
