Duplex plan J1003-12d

Townhouse-style duplex plan with 3 bedrooms per unit.

Bedrooms: 3 Bath: 2.75
Living area: 2918 sq. ft.
Other: 52 sq. ft.
Total: 2970 sq. ft.

Living area/unit: 1459 sq. ft.

Width: 30'-0"
Depth: 59'-0"

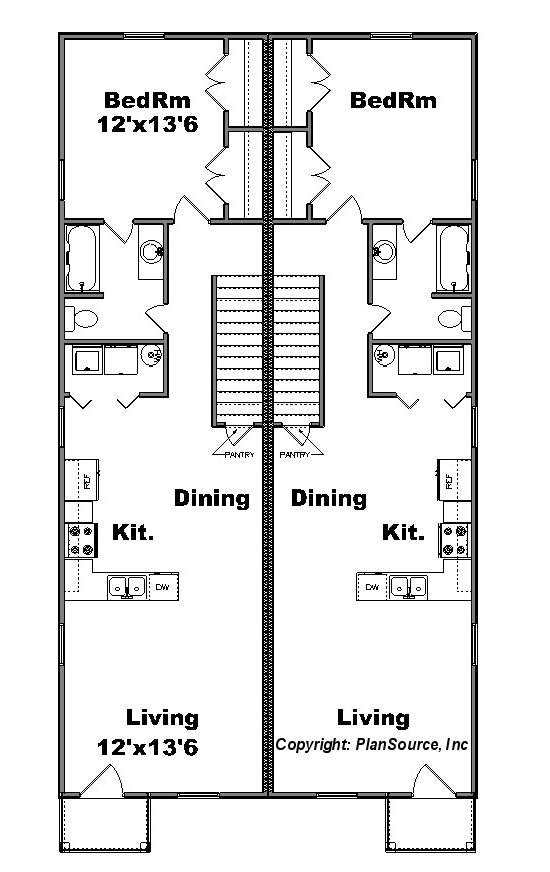

Floor plan

2nd Floor plan

J1003-12d 2nd Floor Ad Copy

Modify this plan

Exterior view

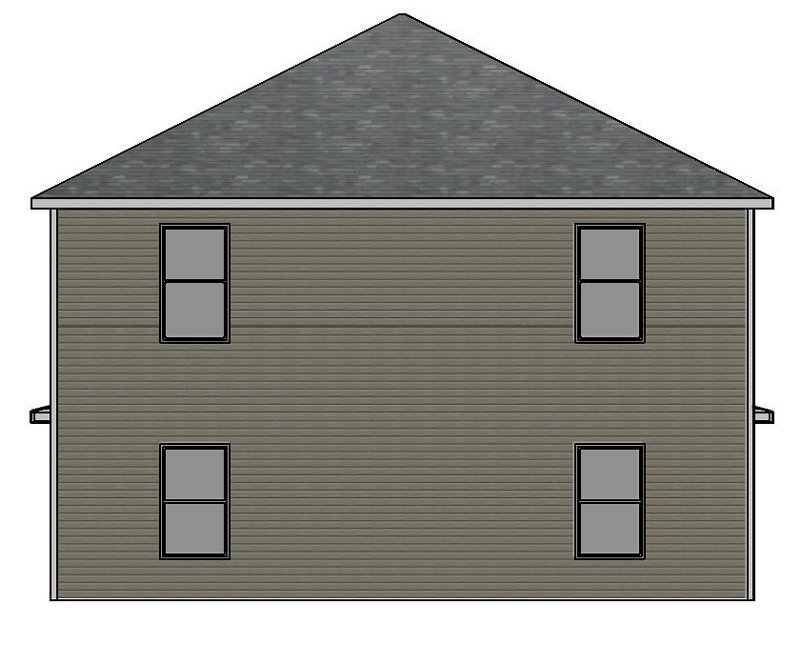

Rear elevation

Duplex plan J1003-12d

PDF File - $1295.00

5 Sets - $1445.00

5 sets + PDF - $1595.00

CAD Files - $1795.00

Study set - PDF - $350.00
