Duplex plan J09053db

Perfect for lots that are somewhat narrow but have plenty of depth. See alternate version: J09053d

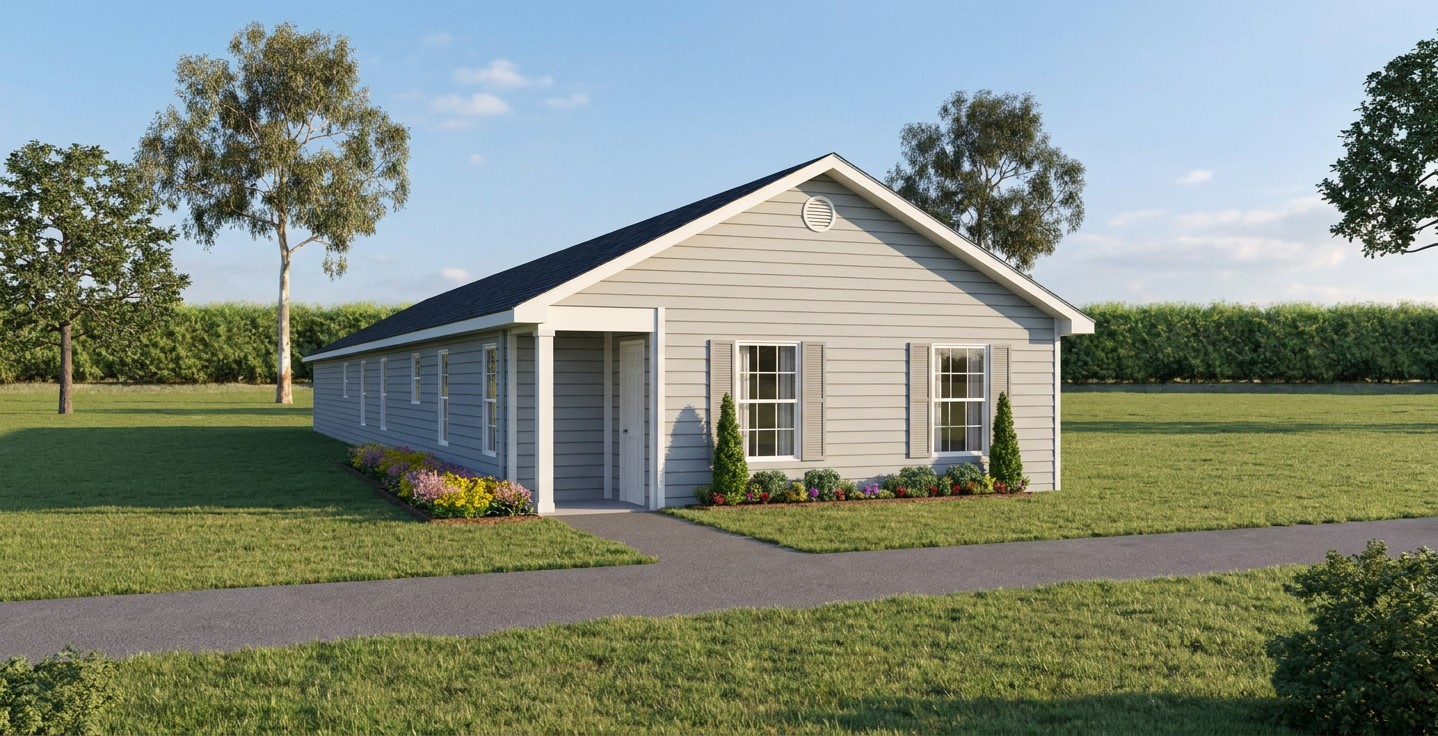

J09053db Rendering Mid
Bedrooms: 3    Bath: 2
Living area: 2158 sq. ft.
Other: 50 sq. ft.
Total: 2208 sq. ft.

Living area/unit: 1079 sq. ft.

Width: 24'-0"
Depth: 92'-0"
Select plan package: What's included?
Add-ons:

Material list - $145.00

Unlimited builds - $595.00

Modify my plans*
    *Enter details during checkout.





Floor plan
J09053db Ad Copy

Exterior view
J09053db Rendering
