Triplex plan J1224-17T

Economical triplex with one bedroom and one bath per unit. There is also a duplex version of this plan. See also J1224-17T-B for a non-staggered, inline version of this layout.
Triplex plan J1224-17T, RenderingMid
1 bedroom / 1 bath
Living area = 1728 sq. ft.
Other = 150 sq. ft.
Total = 1878 sq. ft.

Living area per unit: 576 sq. ft.

Width: 48'-11"    Depth: 42'-6"
Choose Plan Option:
What's included?

5 Sets - $695.00
PDF File - $845.00
5 sets + PDF File - $970.00
CAD Files - $1190.00
Study set-PDF - $350.00
Study set-Shipped - $395.00

Add Material list - $145.00

*Click here for information about PDF delivery times.
Floor plan
Triplex floor plan, J1224-17T
Exterior view
J1224-17T rendering

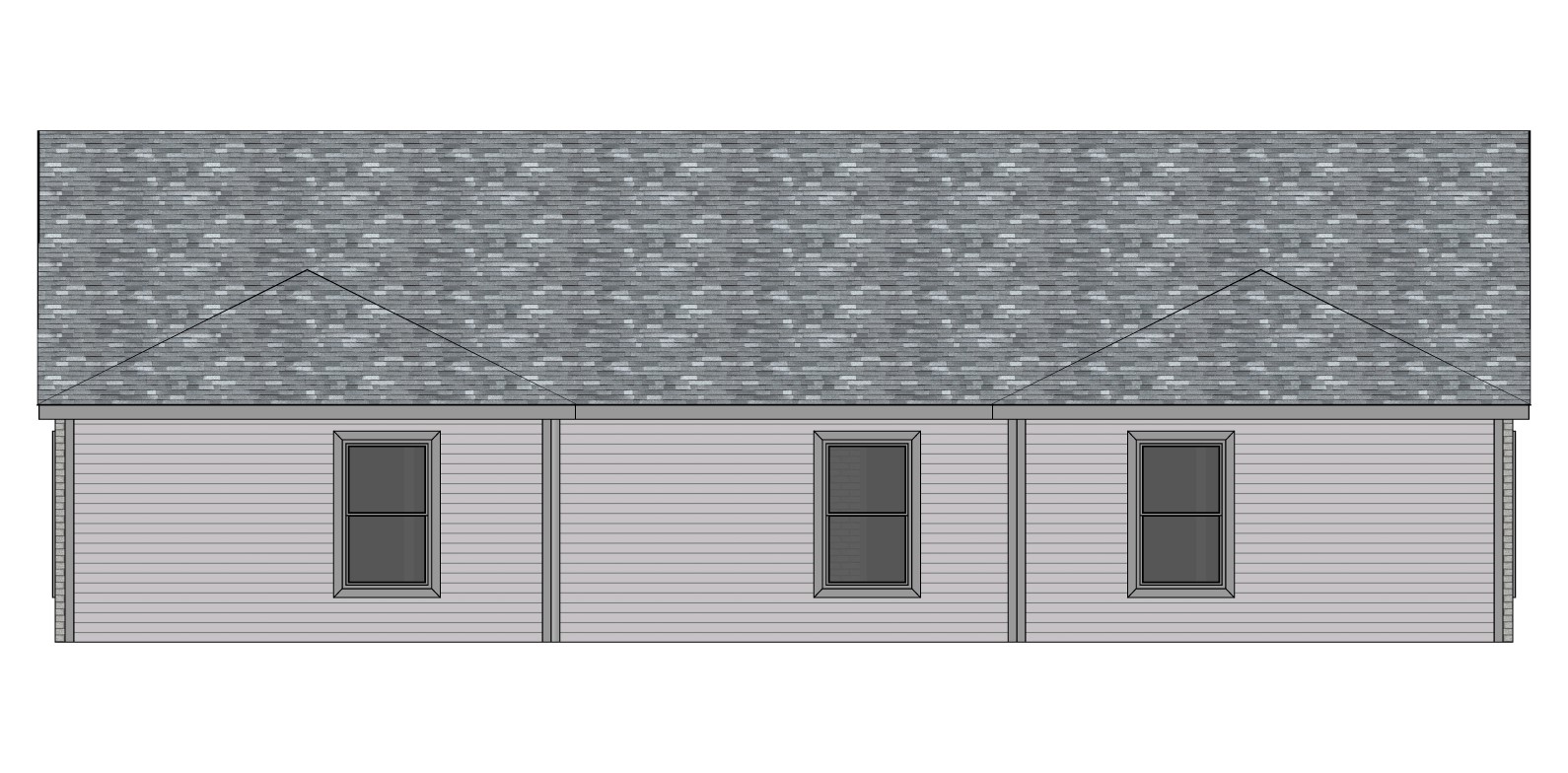

Rear elevation
J1224-17T tripex,  Rear view
