Duplex plan J1617d

Designed for narrow or corner lots. Bathroom shared between bedrooms; Jack-and-Jill.
J1617d Rendering Mid
Bedrooms: 2    Bath: 1.5
Living area: 1617 sq. ft.
Other: 130 sq. ft.
Total: 1747 sq. ft.

Living area/unit: ~ 808 sq. ft.

Width: 77'-10"
Depth: 27'-10"
Select plan package: What's included?
Add-ons:

Material list - $145.00

Unlimited builds - $595.00

Modify my plans*
    *Enter details during checkout.

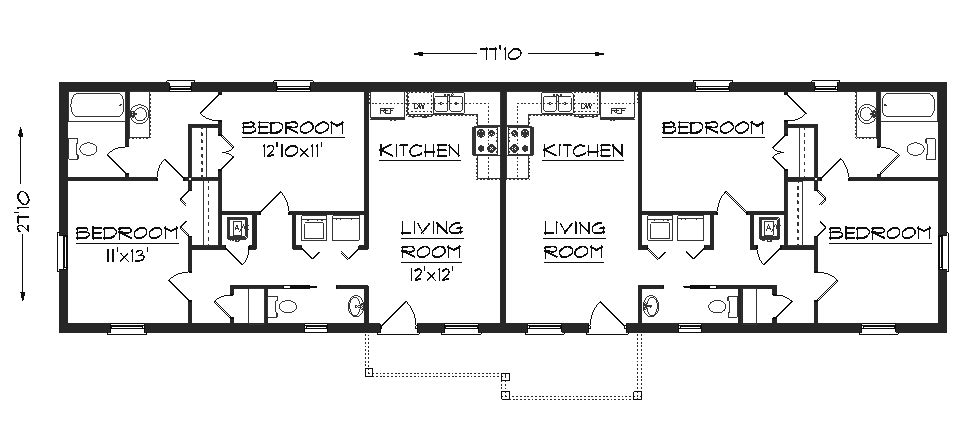

Floor plan
duplex J-1617d, floor plan
Exterior view
J1617d Rendering.jpg

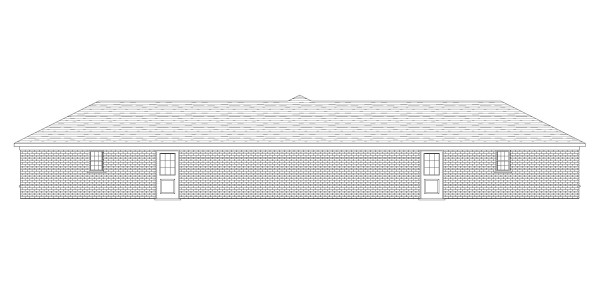

Rear elevation
J1617d rear elevation
