Duplex plan J2878d-25

Duplex plan with one unit per floor (1 over 1 layout), covered/enclosed stairs and open living area. For more options with the same or similar layout, see plans J2878-4B , J2878-4-21 , J2878d and J2878-5

3 bedroom units
Living area: 2086 sq. ft.
Other: 193 sq. ft.
Total: 2279 sq. ft.

Living area/unit: 1043 sq. ft.

Width: 33'-0"
Depth: 46'-2"

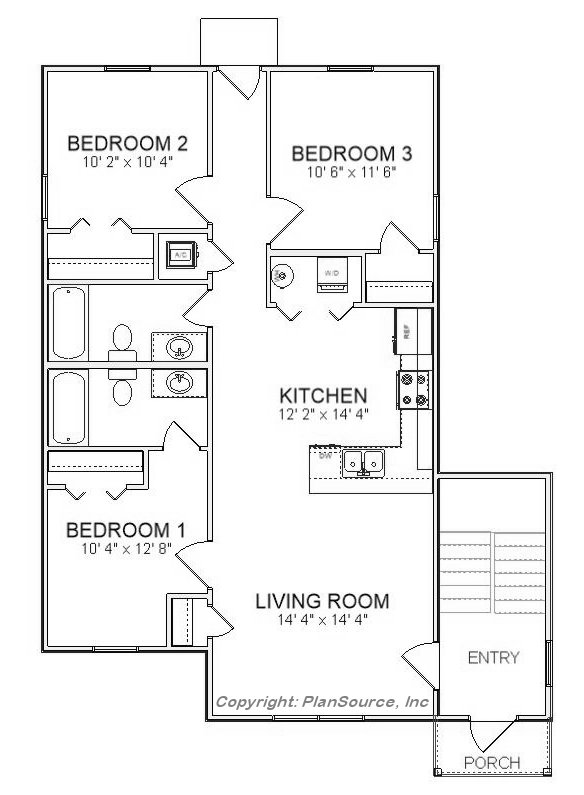

1st Floor plan

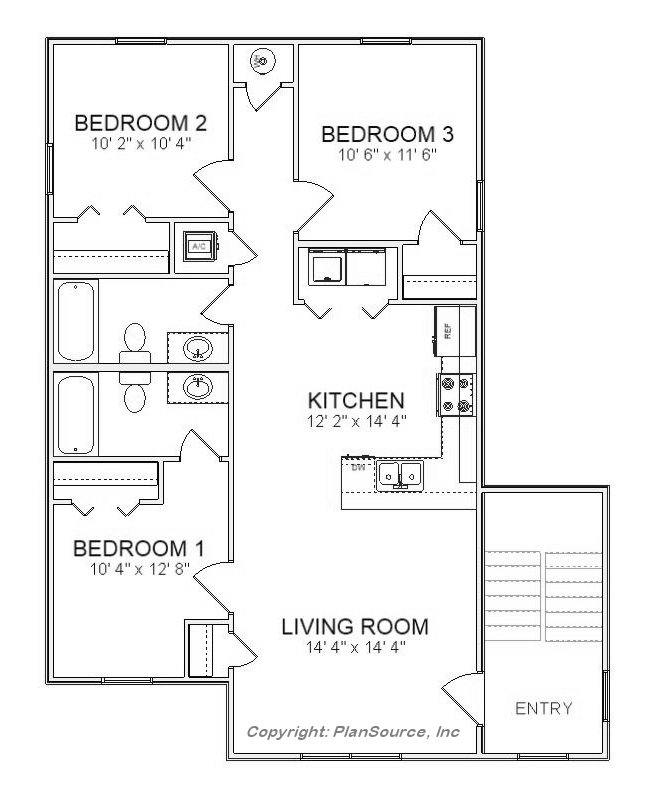

2nd Floor plan

Modify this plan

Exterior view

Duplex plan J2878d-25

5 Sets: $795.00

PDF File: $945.00

5 sets + PDF: $1095.00

CAD Files: $1295.00

Study set - PDF: $350.00
