Apartment plan J2878-4

Economical design with an open layout. One of our most popular 4-plex plans with all units on one level. See the alternate plan with all 2 bedroom units - J2878-4B Also see plan J2878-4-21 for two bathrooms in all units. Or for more units, see plan J2878-5

2 and 3 bedroom units
Living area: 3626 sq. ft.
Other: 118 sq. ft.
Total: 3744 sq. ft.

Living area/unit: varies

Width: 95'-6"
Depth: 41'-5"

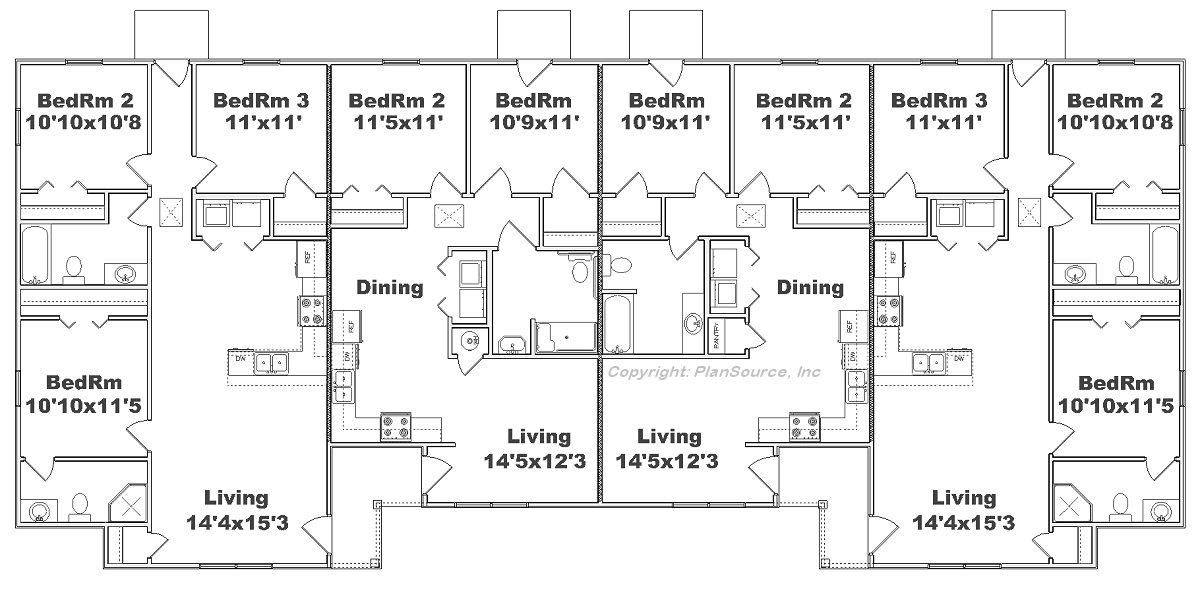

Floor plan

Modify this plan

Exterior view

Rear elevation

Apartment plan J2878-4

PDF File: $895.00

5 Sets: $1045.00

5 sets + PDF: $1195.00

CAD Files: $1395.00

Study set - PDF: $350.00
