Duplex plan J0822-17d

Small duplex house plan with open living areas and covered porches.
J0822-17d RenderingMid
Bedrooms: 1    Bath: 1
Living area: 1288 sq. ft.
Other: 202 sq. ft.
Total: 1490 sq. ft.

Width: 36'-0"
Depth: 45'-0"
Immediate downloads:
Choose plan package: What's included?
Add-ons:

Add Material list - $145.00

Modify my plans*
   *Enter details during checkout.



Immediate downloads:
Floor plan
J0822-17d floor plan layout
Exterior view
J0822-17d Rendering

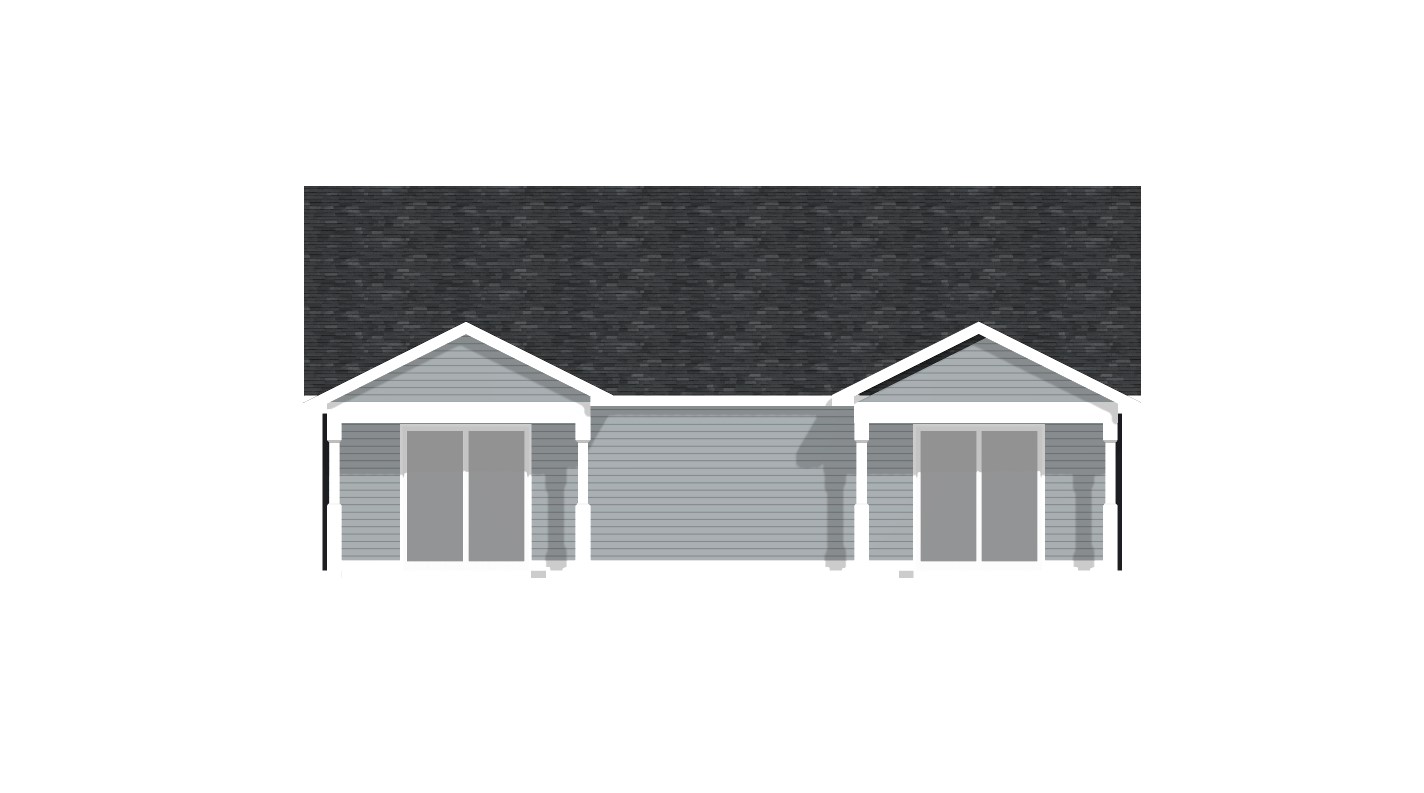

Rear elevation
 J0822-17d back view
