Duplex plan J0121-12db

2-Bedroom duplex with single garage per unit; 2 story townhouse layout. See J0121-12T or J0121-12d-2 for other versions of this plan, inlcuding a 3 bedroom version without the garage.

Bedrooms: 2 Bath: 2.5
Living area: 2662 sq. ft.
Other: 586 sq. ft.
Total: 3248 sq. ft.

Living area/unit: 1331 sq. ft.

Width: 40'-0"
Depth: 48'-0"

Floor plan

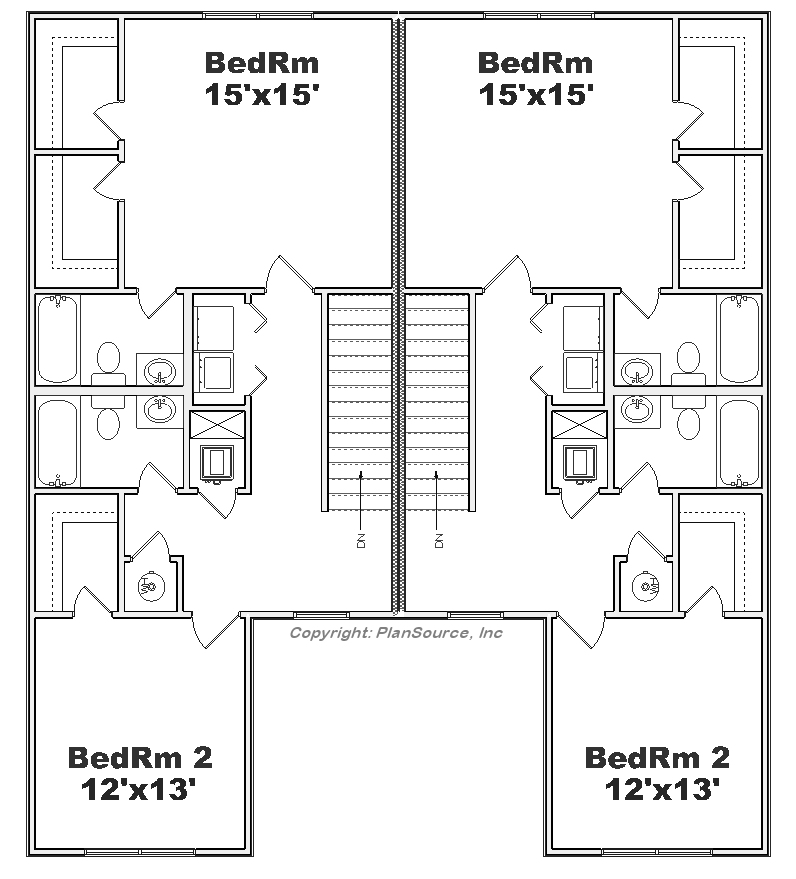

2nd Floor plan

Modify this plan

Exterior view

Rear elevation

Duplex plan J0121-12db

PDF File: $795.00

5 Sets: $945.00

5 sets + PDF: $1095.00

CAD Files: $1295.00

Study set - PDF: $350.00
