Duplex plan J949d

Efficient plan with open kitchen/living area and separate dining room. For a 4 unit version see J949-4-26 or J949-4

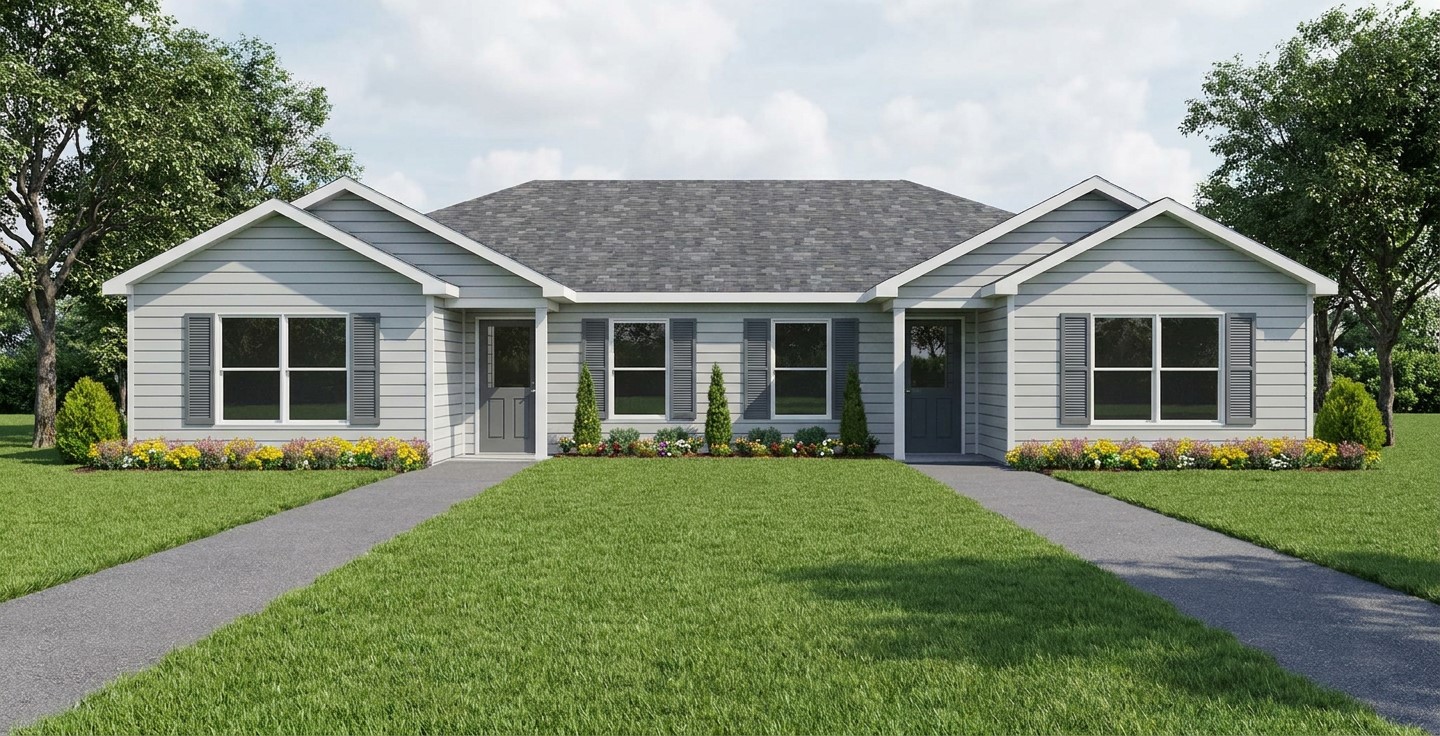

Duplex, J949d Rendering Mid
Bedrooms: 2    Bath: 1
Living area: 1843 sq. ft.
Other: 43 sq. ft.
Total: 1886 sq. ft.

Living area/unit: ~921 sq. ft.

Width: 52'-0"
Depth: 42'-4"
Choose plan package: What's included?
Add-ons:

Add Material list - $145.00

Modify my plans*
   *Enter details during checkout.

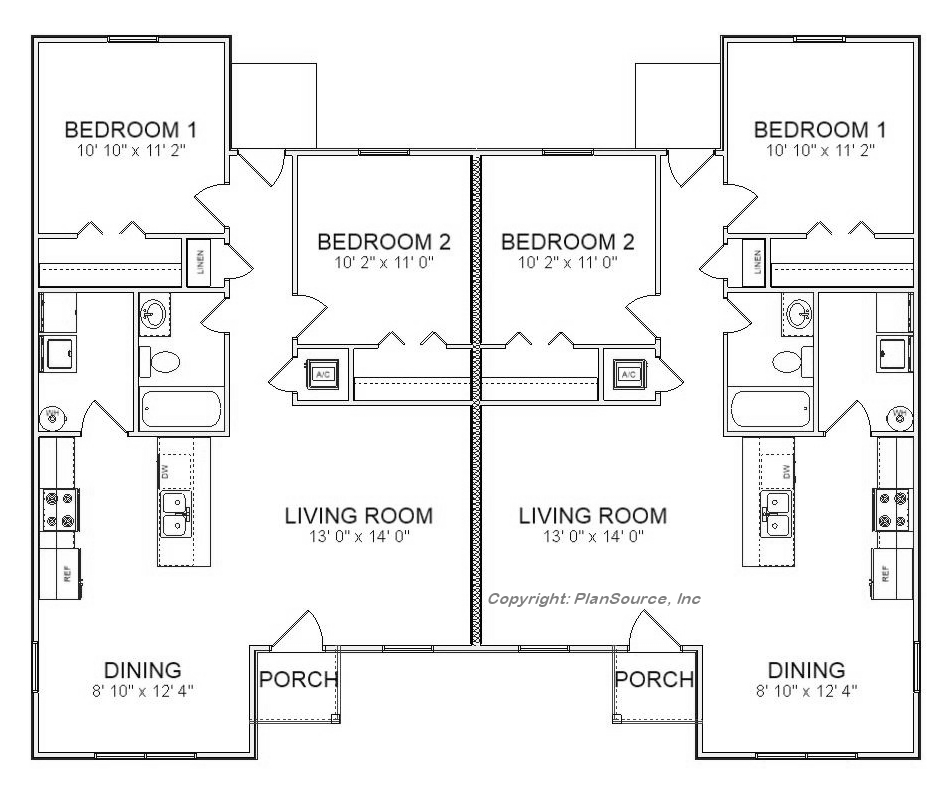

Floor plan
Duplex J949d flr plan
Exterior view
J949d Rendering
Rear elevation
J949d rear elevation
