Duplex plan J1690-15d

Duplex plan designed for narrow lots.
J-1690d-B RenderingMid
Bedrooms: 2    Bath: 2
Living area: 1675 sq. ft.
Other: 135 sq. ft.
Total: 1810 sq. ft.

Living area/unit: ~ 837 sq. ft.

Width: 30'-0"
Depth: 64'-4" (with patio)
Choose plan package: What's included?
Add-ons:

Add Material list - $145.00

Modify my plans*
   *Enter details during checkout.



Floor plan
Narrow duplex J1690-15d
Exterior view
J-1690d-B Rendering

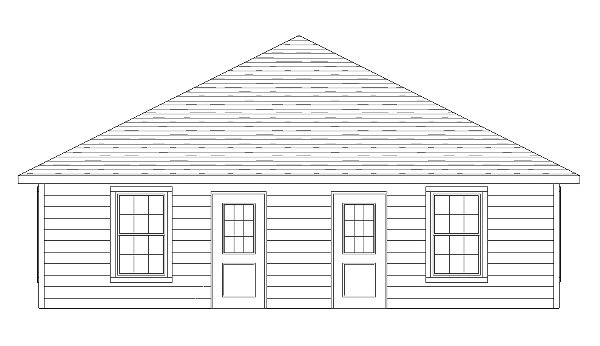

Rear elevation
 J1690-15d Rear view
